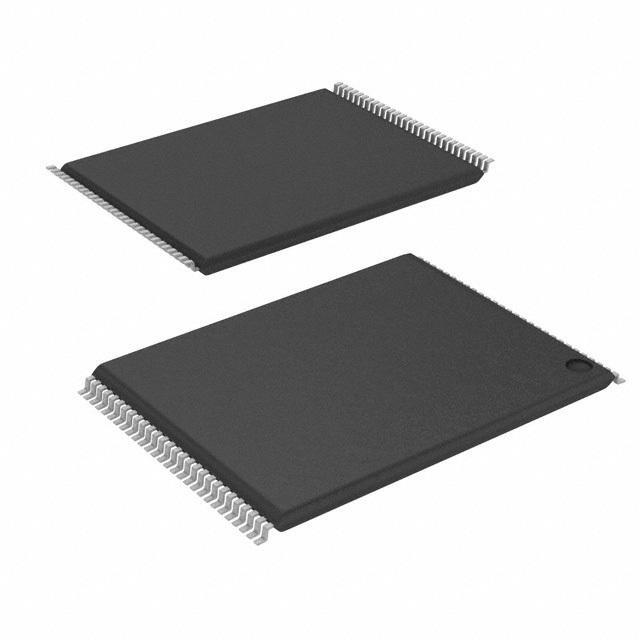

The JS28F128P30T85A is a 128Mb (Megabit) Parallel NOR Flash memory device manufactured by Micron Technology. It is designed for embedded applications requiring non-volatile storage and fast read access times.

Applications

• Embedded Systems: Used for storing boot code, firmware, and configuration data in embedded systems.
• Industrial Control: Implemented in industrial automation equipment for storing program code and data.
• Networking Devices: Used in routers, switches, and other networking devices for storing operating systems and configuration settings.
• Medical Devices: Found in medical equipment for storing software and patient data.
• Automotive Electronics: Used in automotive systems for storing ECU (Engine Control Unit) firmware.

Features

• 128Mb Density: Offers a memory capacity of 128 Megabits.
• Parallel Interface: Uses a parallel interface for fast data access.
• NOR Flash Technology: Provides fast read times and random access capability.
• Page Mode Operation: Supports page mode operation for efficient data transfer.
• Sector Erase: Allows for selective erasure of memory sectors.
• Supply Voltage: Operates at a standard supply voltage (typically 3V or 1.8V, check datasheet).
• Operating Temperature Range: Specified operating temperature range for reliable operation.
• Package Type: Typically available in TSOP (Thin Small Outline Package) or other surface-mount packages.

Benefits

• Fast Read Access: NOR Flash provides fast read times, enabling quick execution of code.
• Non-Volatile Storage: Retains data even when power is removed.
• Reliable Operation: Ensures data integrity and stable operation.
• Flexible Memory Management: Sector erase capability allows for efficient memory management.
• Compact Size: Surface-mount packages minimize board space requirements.

Additional Details

The JS28F128P30T85A has specific timing parameters, including read cycle time, write cycle time, and erase time, which can be found in the device datasheet. The device supports various protection features, such as write protection, to prevent accidental data corruption. Detailed information regarding the parallel interface pinout, addressing modes, and command set is available in the datasheet. Proper decoupling capacitors should be used to ensure stable power supply and minimize noise. The device's endurance rating (number of program/erase cycles) is an important consideration for applications requiring frequent data updates. Always consult the manufacturer's datasheet for complete and accurate specifications.
