The MT46V16M16TG-6TIT is a 256Mb DDR SDRAM (Double Data Rate Synchronous Dynamic Random-Access Memory) manufactured by Micron Technology. It's used for high-speed data access in various applications.

Applications:

• Graphics cards
• Networking equipment
• Printers
• Set-top boxes
• Gaming consoles
• General purpose computing

Features:

• Density: 256Mb (16Meg x 16)
• Interface: DDR SDRAM
• Clock Rate: Up to 166 MHz
• Data Rate: Up to 333 Mbps
• Supply Voltage: 2.5V ±0.2V
• Operating Temperature: 0°C to +70°C

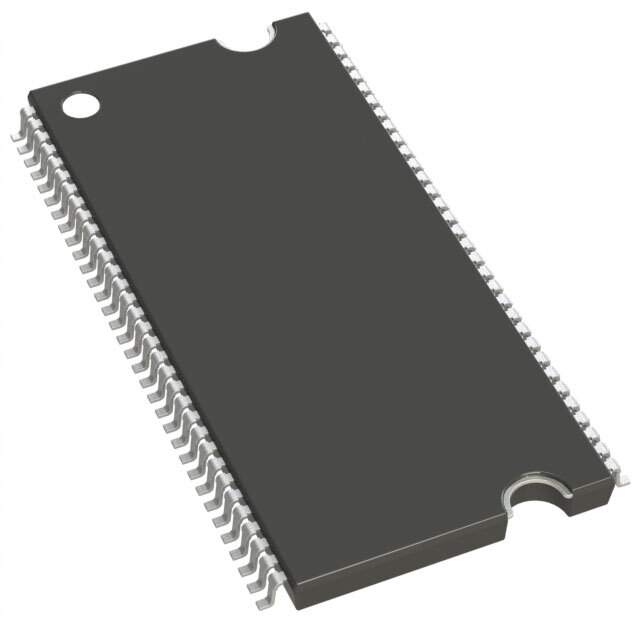

• Package: TSOP II
• CAS Latency (CL): 2, 2.5, 3

Benefits:

• High Bandwidth: Double data rate provides high data transfer rates for improved performance.
• Low Latency: Fast access times reduce delays in data retrieval.
• Low Power Consumption: 2.5V operation reduces power usage.
• High Density: 256Mb density provides ample memory capacity.
• Cost-Effective: DDR SDRAM offers a balance of performance and cost.

Additional Details:

The MT46V16M16TG-6TIT is a JEDEC-compliant DDR SDRAM device. It supports burst lengths of 2, 4, and 8. The device features auto precharge and write recovery options. It incorporates on-chip DLL (Delay-Locked Loop) to maintain signal integrity at high speeds. The operating temperature range is standard commercial grade.

The DDR SDRAM architecture allows data to be transferred on both the rising and falling edges of the clock signal, effectively doubling the data transfer rate compared to single data rate SDRAM. This high bandwidth makes it suitable for applications requiring fast memory access.
