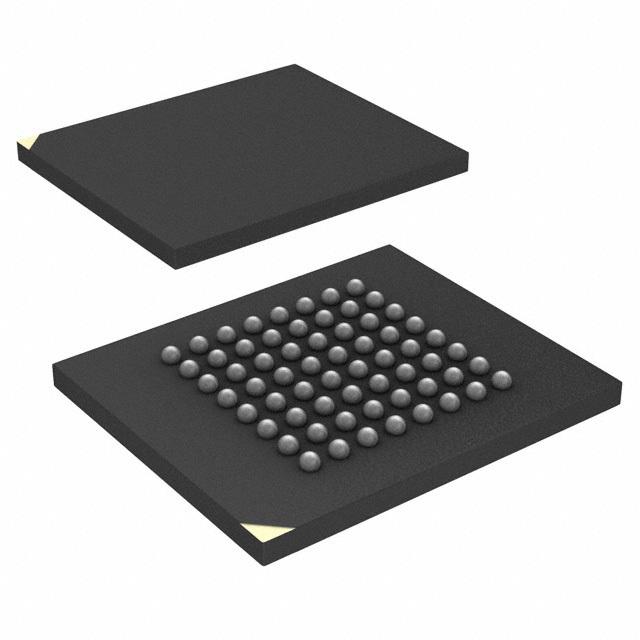

The PC28F128P30BF65A is a 128-Megabit (16 M x 8 or 8 M x 16) Parallel Flash Memory device manufactured by Micron Technology. It is designed for high-performance, high-density storage applications and provides a cost-effective solution for embedded systems requiring non-volatile memory.

Applications

• Embedded Systems: Used in various embedded systems for storing boot code, application code, and data.
• Networking Equipment: Found in routers, switches, and other networking devices for storing firmware and configuration data.
• Industrial Control Systems: Employed in industrial controllers and automation equipment for storing program code and operational parameters.
• Consumer Electronics: Utilized in devices like set-top boxes, digital TVs, and gaming consoles for storing firmware and application data.
• Automotive Systems: Integrated into automotive control units for storing software and configuration data.

Features

• High Density: 128-Megabit storage capacity.
• Parallel Interface: Provides fast access times and efficient data transfer.
• Page Mode Operation: Enables high-speed read and write operations.
• Sector Erase: Allows selective erasure of memory sectors for efficient memory management.
• Low Power Consumption: Designed for low power operation, making it suitable for battery-powered devices.
• Advanced Security Features: Includes security features to protect stored data from unauthorized access.
• CMOS Technology: Fabricated using CMOS technology for high performance and reliability.
• Operating Voltage: Operates at a specified voltage range.

Benefits

• High Performance: Delivers fast read and write speeds, enabling quick boot times and efficient data processing.
• Large Storage Capacity: Provides ample storage space for code, data, and other critical information.
• Reliable Data Storage: Ensures reliable data storage with advanced error correction and data protection features.
• Cost-Effective Solution: Offers a cost-effective solution for high-density non-volatile memory requirements.
• Low Power Consumption: Minimizes power consumption, extending battery life in portable devices.
• Secure Data Storage: Protects sensitive data from unauthorized access and tampering.
• Easy Integration: Simplifies integration into various systems with its standard parallel interface.
• Long-Term Availability: Ensures long-term availability and support for embedded applications.

Additional Details

The PC28F128P30BF65A flash memory device is organized into uniform sectors, allowing for flexible memory management. It supports various operating modes, including read, write, erase, and program modes. The device also incorporates error correction code (ECC) to enhance data integrity. The parallel interface allows for easy integration with microprocessors and microcontrollers.

Key Specifications:

• Density: 128 Megabits
• Organization: 16M x 8 or 8M x 16
• Interface: Parallel
• Operating Voltage: Typically 3V or 5V (Consult datasheet for specific voltage range)
• Operating Temperature: Industrial temperature range available
• Package: Consult datasheet for package types (e.g., TSOP, FBGA)
