The PC28F512M29EWLB is a 512Mb Parallel NOR Flash memory device manufactured by Micron Technology (now part of Micron's Numonyx division and potentially Winbond). It's designed for embedded applications requiring fast read access, low power consumption, and high endurance. This type of memory is commonly used for storing boot code, firmware, and executable code in various electronic systems. Its parallel interface allows for high data throughput, making it suitable for applications where speed is critical.

Applications

• Embedded Systems: Stores boot code and firmware for microcontrollers and microprocessors.
• Networking Equipment: Used in routers, switches, and other network devices to store configuration data and operating system images.
• Industrial Control Systems: Stores program code and data for PLCs and other industrial controllers.
• Automotive Electronics: Used in engine control units (ECUs) and other automotive systems for storing calibration data and software.
• Consumer Electronics: Found in digital cameras, printers, and other devices to store firmware and user data.

Features

• 512Mb Density: Provides ample storage capacity for embedded applications.
• Parallel Interface: Offers high data throughput for fast read and write operations.
• NOR Flash Technology: Enables fast random access and direct code execution.
• Low Power Consumption: Minimizes energy usage in battery-powered devices.
• High Endurance: Withstands a large number of program/erase cycles.
• Wide Voltage Range: Operates over a wide range of supply voltages.

Benefits

• Fast Boot Times: The fast read access of NOR flash allows for quick system startup.
• Efficient Code Execution: Code can be executed directly from the flash memory, eliminating the need for shadowing to RAM.
• Extended Battery Life: Low power consumption contributes to longer battery life in portable devices.
• Reliable Data Storage: High endurance ensures data integrity over the lifetime of the device.
• Versatile Integration: The parallel interface simplifies integration into a wide range of systems.

Additional Details

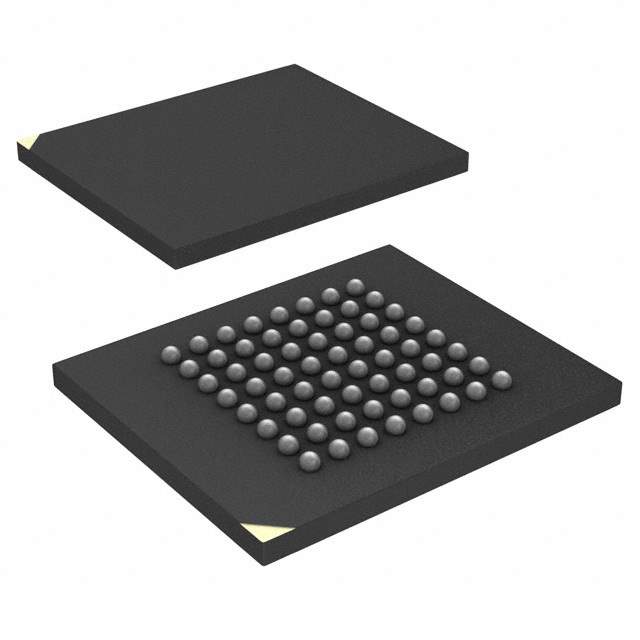

The PC28F512M29EWLB is typically available in a LFBGA package. The operating temperature range is usually -40°C to +85°C. Specific timing characteristics, such as read access time and write cycle time, can be found in the Micron/Numonyx datasheet. This flash memory is designed to provide reliable and high-performance storage for demanding embedded applications. For detailed specifications and application notes, refer to the official Micron Technology or Winbond documentation for the product.
