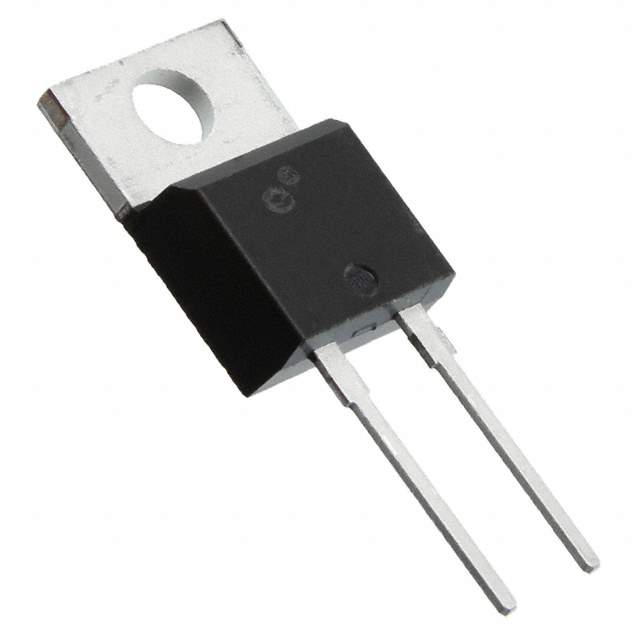

Same model may have multiple batches, images only for reference.

APT10SCD120K

Name: APT10SCD120K
Brand: Microsemi Corporation
SKU: 768662
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	APT10SCD120K
Manufacturer	Microsemi Corporation
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHOTTKY 1.2KV 10A TO220 / Diode Schottky 1.2KV 10A 2-Pin(2+Tab) TO-220 Tube
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Microsemi Corporation
Packaging	Bulk
Diode Type	Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Maximum)	1200V
Current - Average Rectified (Io)	10A
Voltage - Forward (Vf) (Maximum) @ If	1.5V @ 10A
Speed	No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr)	0ns
Mounting Style	Through Hole
Package	TO-220-2
Manufacturer Package	TO-220
Win Source Part Number	768662-APT10SCD120K
Popularity	Medium
Supply and Demand Status	Limited
Family Name	APT10SCD120K
Introduction Date	January 01, 2000
ECCN	EAR99
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian APT10SCD120K CAD Model

Alternative Products

Description

The Microsemi Corporation 768662-APT10SCD120K is a high-performance diode designed for use in electronic circuits.

Packaging: Bulk
Mounting Style: Through hole
Diode Type: Silicon Carbide Schottky
Current - Average Rectified (Io): 10A
Manufacturer: Microsemi Corporation
Supply and Demand Status: Limited
