Same model may have multiple batches, images only for reference.

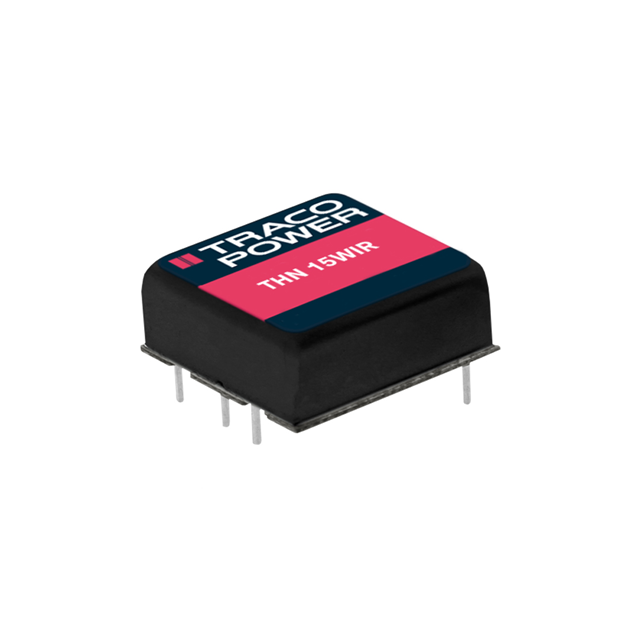

THN 15-7223WIR Real Image
Same model may have multiple batches, images only for reference.

THN 15-7223WIR

Part No THN 15-7223WIR
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 15W / Isolated Module DC DC Converter 2 Output 15V -15V 500mA, 500mA 36V - 160V Input
Datasheet
THN 15-7223WIR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 36V
Voltage - Input (Max) 160V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 500mA, 500mA
Power (Watts) 15 W
Voltage - Isolation 3 kV
Applications ITE (Commercial), Railway
Features Remote On/Off, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 90°C (With Derating)
Efficiency 89%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Base Product Number THN 15
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number THN 15-7223WIR-ND,THN15-7223WIR,1951-3128,THN15-7223WIR-ND
Standard Package 10
Win Source Part Number 1336027-THN 15-7223WIR
Ultra Librarian 3D Model Ultra Librarian THN 15-7223WIR CAD Model

Description

The THN 15-7223WIR is a DC DC converter that is board-mounted and isolated.

  • Packaging: Tube
  • Manufacturer: Traco Power
  • Standard Package: 10
  • Mounting: Through-hole
  • Power Rating: 15W
  • Voltage Isolation: 3 kV
  • Outputs: Two
  • Maximum Current Output (each): 500mA
  • Voltage Input Range: 36V to 160V
  • Voltage Output 1: 15V
  • Voltage Output 2: -15V
  • Efficiency: 89%
  • Temperature Range: -40°C to 90°C (with derating)
  • Base Product Number: THN 15
  • RoHS3 Compliant: Yes
