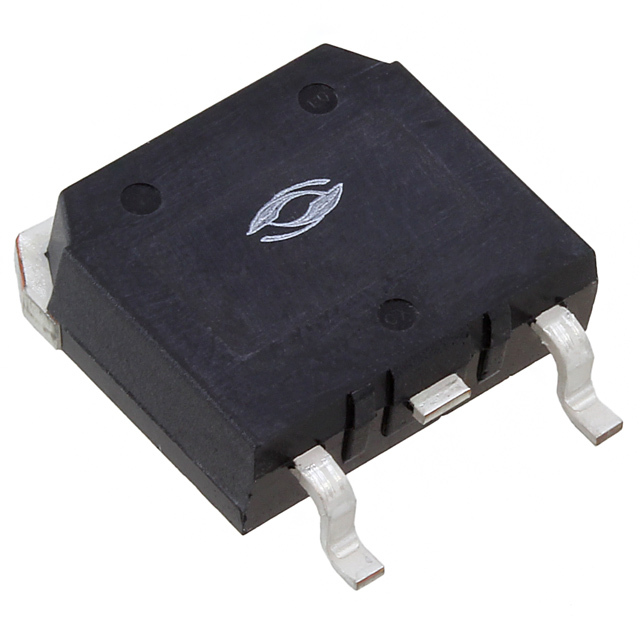

Same model may have multiple batches, images only for reference.
APT20SCD120B Microsemi Corporation – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

APT20SCD120B

Part No APT20SCD120B
Manufacturer Microsemi Corporation
Catalog Diodes, Rectifiers - Single
Description DIODE SIL CARBIDE 1.2KV 68A
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Package Tube
Product Status Obsolete
Technology SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) 68A
Voltage - Forward (Vf) (Max) @ If 1.8 V @ 20 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 400 µA @ 1200 V
Capacitance @ Vr, F 1135pF @ 0V, 1MHz
Operating Temperature - Junction -55°C ~ 150°C
Ultra Librarian 3D Model Ultra Librarian APT20SCD120B CAD Model
