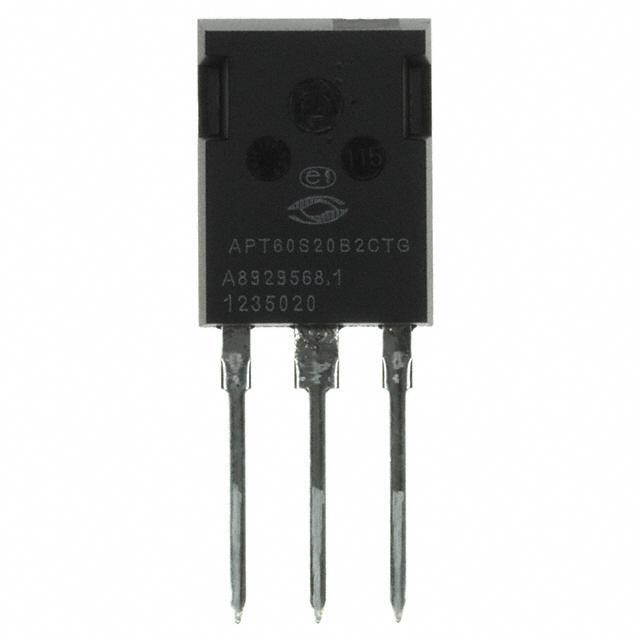

APT60S20B2CTG

Name: APT60S20B2CTG
Brand: Microsemi Corporation
SKU: 768711
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	APT60S20B2CTG
Manufacturer	Microsemi Corporation
Catalog	Diodes, Rectifiers - Arrays
Description	DIODE ARRAY SCHOTTKY 200V TMAX / Diode Schottky 200V 75A 3-Pin(3+Tab) T-MAX Tube
Datasheet	APT60S20B2CTG Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Microsemi Corporation
Packaging	Tube
Diode Configuration	1 Pair Common Cathode
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Maximum)	200V
Current - Average Rectified (Io) (per Diode)	75A
Voltage - Forward (Vf) (Maximum) @ If	900mV @ 60A
Speed	Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr)	55ns
Current - Reverse Leakage @ Vr	1mA @ 200V
Operating Temperature - Junction	-55°C ~ 150°C
Mounting Style	Through Hole
Package	TO-247-3 Variant
Manufacturer Package	T-MAX [B2]
Win Source Part Number	768711-APT60S20B2CTG
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	1
Family Name	APT60S20B2CT
Introduction Date	February 26, 2004
ECCN	EAR99
Estimated EOL Date	2024
Ultra Librarian 3D Model	Ultra Librarian APT60S20B2CTG CAD Model

Alternative Products

Description

The Microsemi Corporation APT60S20B2CTG is a member of the APT60S20B2CT family of discrete semiconductor products.

Mounting: Through-hole
Package: TO-247-3
Recovery: 200mA (Io)
Reverse Recovery Time (trr): 55ns
Current Reverse Leakage: 1mA @ 200V
Operating Temperature Range: -55°C to 150°C
Configuration: 1 pair common cathode
Average Rectified Current (Io): 75A per diode
Cross-Reference Part Numbers: STPS80170CW, STPS61170CW, STPS60SM200CW, SSR80200CTZUB
Introduction Date: February 26, 2004
EOL Date: 2024
Status: Limited Supply and Demand
