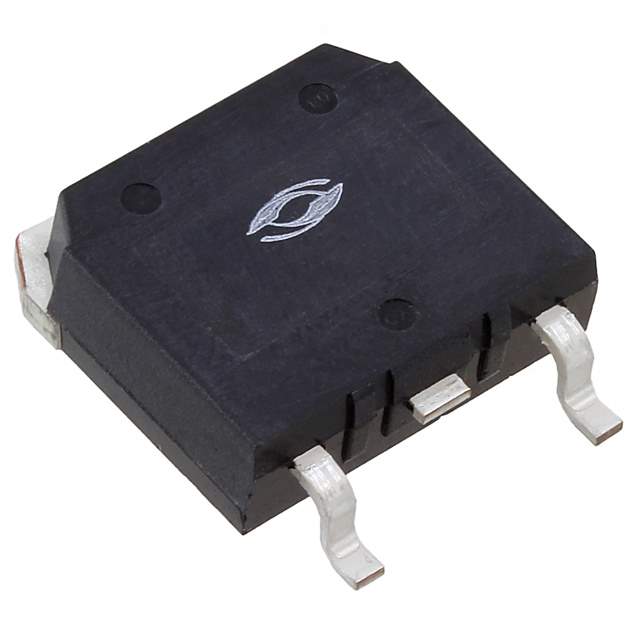

APT60S20SG/TR Real Image
Same model may have multiple batches, images only for reference.

APT60S20SG/TR

Part No APT60S20SG/TR
Manufacturer Microsemi Corporation
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 200V 75A D3PAK / DIODE SCHOTTKY 200V 75A D3PAK
Datasheet
APT60S20SG/TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Reel package
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 200V
Current - Average Rectified (Io) 75A
Voltage - Forward (Vf) (Maximum) @ If 900mV @ 60A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 55ns
Current - Reverse Leakage @ Vr 1mA @ 200V
Mounting SMD
Package TO-268-3, D3Pak (2 Leads + Tab), TO-268AA
Manufacturer Package D3Pak
Operating Temperature - Junction -55°C ~ 150°C
Win Source Part Number 768712-APT60S20SG/TR
Popularity Medium
Supply and Demand Status Limited
Quantity per package 400
Family Name APT60S20SG
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian APT60S20SG/TR CAD Model

Description

The Microsemi Corporation APT60S20SG/TR is a Schottky diode integrated circuit that comes in a TO-268-3, D3Pak (2 Leads + Tab), TO-268AA package.

  • Recovery Speed: 200mA (Io)
  • Operating Temperature Range: -55°C to 150°C
  • Current Average Rectified (Io): 75A
  • Reverse Recovery Time (trr): 55ns
  • Current Reverse Leakage: 1mA @ 200V
  • Voltage Forward (Vf): 900mV @ 60A
  • Status: Limited Supply and Demand
  • Package: Reel
  • Quantity per Package: 400
