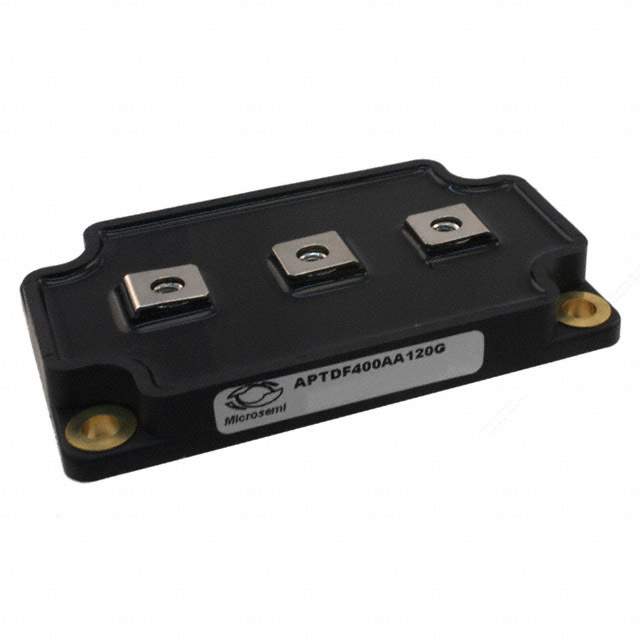

APTDF400AA120G Real Image
Same model may have multiple batches, images only for reference.

APTDF400AA120G

Part No APTDF400AA120G
Manufacturer Microsemi Corporation
Catalog Diodes, Rectifiers - Arrays
Description Dual Common Anode diodes Power Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Diode Configuration 1 Pair Common Anode
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 1200V
Current - Average Rectified (Io) (per Diode) 470A
Voltage - Forward (Vf) (Maximum) @ If 3V @ 400A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 385ns
Current - Reverse Leakage @ Vr 250μA @ 1200V
Mounting Chassis Mount
Package LP4
Manufacturer Package SP6
RoHS State Request Verification
Win Source Part Number 1146925-APTDF400AA120G
Manufacturer Homepage www.microsemi.com
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Family Name APTDF400AA120G
Introduction Date July 13, 2006
ECCN EAR99
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian APTDF400AA120G CAD Model

Description

The APTDF400AA120G is a fast recovery diode manufactured by Microsemi Corporation.

  • Mounting: Chassis Mounting
  • Diode Configuration: 1 Pair Common Anode
  • Maximum Voltage: 1200V
  • Forward Voltage: 3V @ 400A
  • Reverse Recovery Time: 385ns
  • Average Rectified Current: 470A per diode
  • Family: APTDF400AA120G
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Estimated EOL Date: 2023
