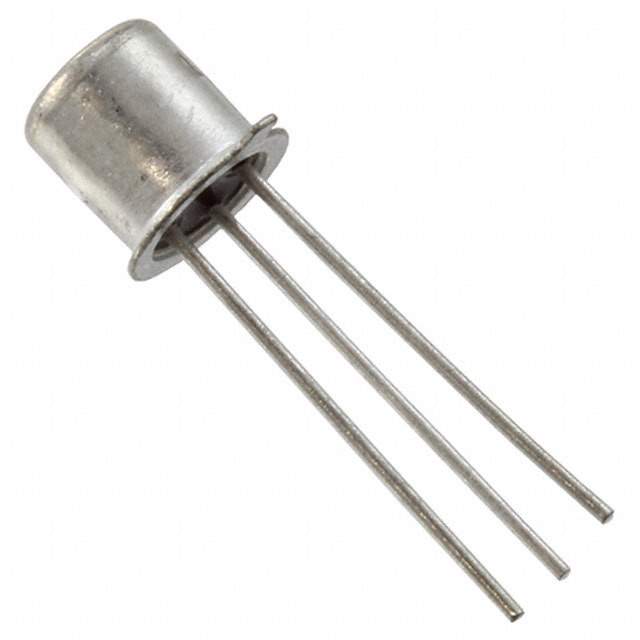

JAN2N3700 Real Image
Same model may have multiple batches, images only for reference.

JAN2N3700

Part No JAN2N3700
Manufacturer Microsemi Corporation
Catalog Transistors (BJT) - Single
Description TRANS NPN 80V 1A / LOW POWER NPN SILICON TRANSISTOR
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Microsemi Corporation
Packaging Bulk
Transistor Type NPN
Current - Collector (Ic) (Maximum) 1A
Voltage - Collector Emitter Breakdown (Maximum) 80V
Vce Saturation (Maximum) at Ib, Ic 500mV at 50mA, 500mA
Current - Collector Cutoff (Maximum) 10nA
DC Current Gain (hFE) (Min) at Ic, Vce 50 at 500mA, 10V
Power - Max 500mW
Temperature Range - Operating -65°C ~ 200°C
Mounting Style Through Hole
Manufacturer Package TO-206AA, TO-18-3 Metal Can
Supplier Device Package TO-18
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 811446-JAN2N3700
Ultra Librarian 3D Model Ultra Librarian JAN2N3700 CAD Model

Description

The JAN2N3700 is an NPN transistor manufactured by Microsemi Corporation.

  • Transistor Type: NPN
  • Package: TO-18-3 metal can
  • Maximum Power: 500mW
  • Popularity: Medium
  • Supply and Demand: Limited
  • Device Package: TO-206AA
  • Manufacturer Package: TO-18
  • DC Current Gain (hFE): 50 @ 500mA, 10V
