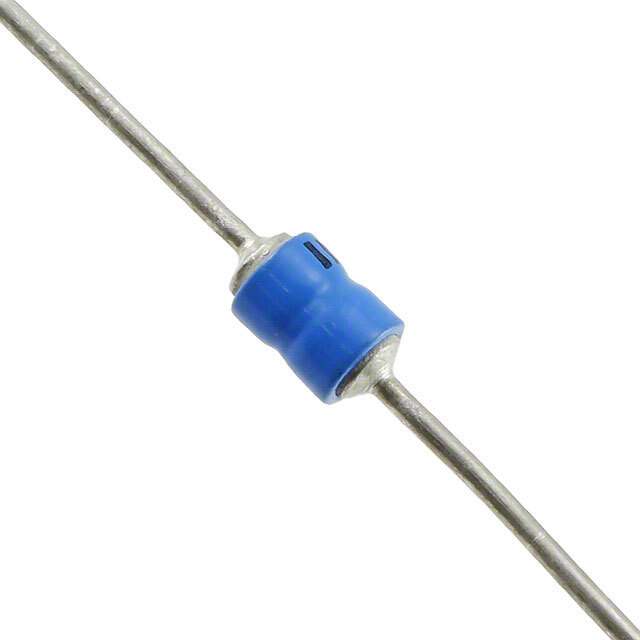

JANS1N5809 Real Image
Same model may have multiple batches, images only for reference.

JANS1N5809

Part No JANS1N5809
Manufacturer Microsemi Corporation
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 100V 3A AXIAL
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 100V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 875mV @ 4A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 30ns
Current - Reverse Leakage @ Vr 5μA @ 100V
Capacitance @ Vr, F 60pF @ 10V, 1MHz
Mounting Through Hole
Operating Temperature - Junction -65°C to 175°C
Win Source Part Number 130493-JANS1N5809
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Ultra Librarian 3D Model Ultra Librarian JANS1N5809 CAD Model

Description

The Microsemi Corporation JANS1N5809 is a standard through-hole diode that is ideal for use in various electronic applications.

  • Maximum DC Reverse Voltage: 100V
  • Average Rectified Current: 3A
  • Forward Voltage @ Maximum Forward Current: 875mV @ 4A
  • Reverse Recovery Time: 30ns
  • Capacitance: 60pF @ 10V and 1MHz
  • Operating Temperature Range: -65°C to 175°C
  • Popularity: Medium
