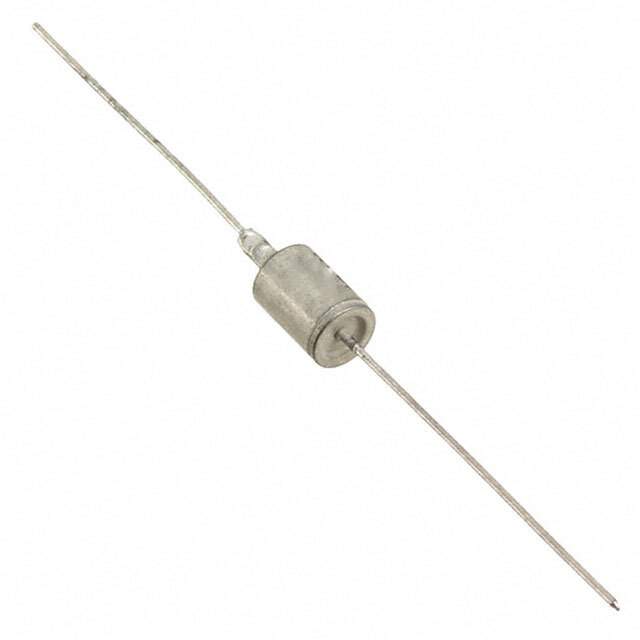

JANTX1N5646A Real Image
Same model may have multiple batches, images only for reference.

JANTX1N5646A

Part No JANTX1N5646A
Manufacturer Microsemi Corporation
Catalog TVS - Diodes
Description 1500 WATT UNIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR
Datasheet
JANTX1N5646A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Microsemi Corporation
Series Military, MIL-PRF-19500/500
Packaging Bulk
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 30.8V
Minimum Breakdown Voltage 34.2V
Maximum Clamping Voltage 49.9V
Current - Peak Pulse (10/1000μs) 30A
Power - Peak Pulse 1500W (1.5kW)
Power Line Protection No
Applications General
Operating Temperature Range -65°C ~ 175°C (TJ)
Mounting Style Through Hole
Package DO-13
Manufacturer Package DO-13 (DO-202AA)
RoHS State Request Verification
Win Source Part Number 1191448-JANTX1N5646A
Manufacturer Homepage www.microsemi.com
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Family Name 1N5646A
Introduction Date December 04, 2003
ECCN EAR99
Country of Origin Ireland, Philippines
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian JANTX1N5646A CAD Model

Description

The JANTX1N5646A is a Zener type discrete semiconductor product manufactured by Microsemi Corporation.

  • Channel: Unidirectional
  • Mounting Style: Through Hole
  • Supplier Device Package: DO-13
  • Manufacturer Pack Quantity: 1
  • Minimum Breakdown Voltage: 34.2V
  • Voltage-Reverse Standoff (Typ): 30.8V
  • Current-Peak Pulse (10/1000μs): 30A
  • Power-Peak Pulse: 1500W (1.5kW)
  • Maximum Clamping Voltage: 49.9V
  • Alternative Parts: 1N5646AB, 1N5646A, and 1N5646A
  • RoHS Compliant: Yes
