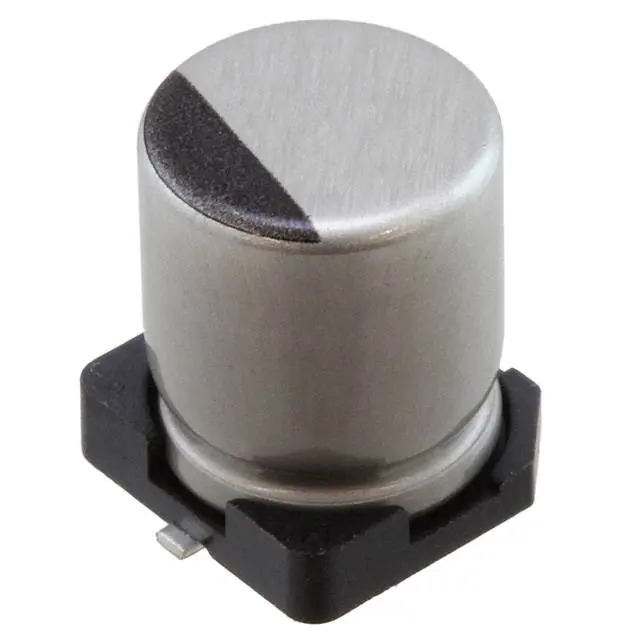

Same model may have multiple batches, images only for reference.

UWZ1C221MCL1GS

Name: UWZ1C221MCL1GS
Brand: Nichicon
SKU: 1360171
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UWZ1C221MCL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 220UF 20% 16V SMD / 220 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Datasheet	UWZ1C221MCL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UWZ
Package	Tape & Reel
Product Status	Active
Capacitance	220 µF
Tolerance	±20%
Voltage - Rated	16 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	High Temperature Reflow
Ripple Current @ Low Frequency	105 mA @ 120 Hz
Ripple Current @ High Frequency	157.5 mA @ 10 kHz
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.303" (7.70mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1360171-UWZ1C221MCL1GS
Ultra Librarian 3D Model	Ultra Librarian UWZ1C221MCL1GS CAD Model

Alternative Products

Description

The UWZ1C221MCL1GS is a surface mount aluminum electrolytic capacitor from Nichicon.

Series: UWZ
Capacitance: 220 µF
Voltage - Rated: 16 V
Application: High Temperature Reflow
Operating Temperature: -55°C ~ 105°C
Lifetime @ Temp.: 1000 Hrs @ 105°C
Mounting Type: Surface Mount
Package / Case: Radial, Can - SMD
Tolerance: ±20%
Lead Spacing: 0.260" L x 0.260" W (6.60mm x 6.60mm)
Size / Dimension: 0.248" Dia (6.30mm)
Height - Seated (Max): 0.303" (7.70mm)
Product Status: Active
Packaging: Tape & Reel
REACH SVHC Status: Unaffected
ECCN: EAR99
