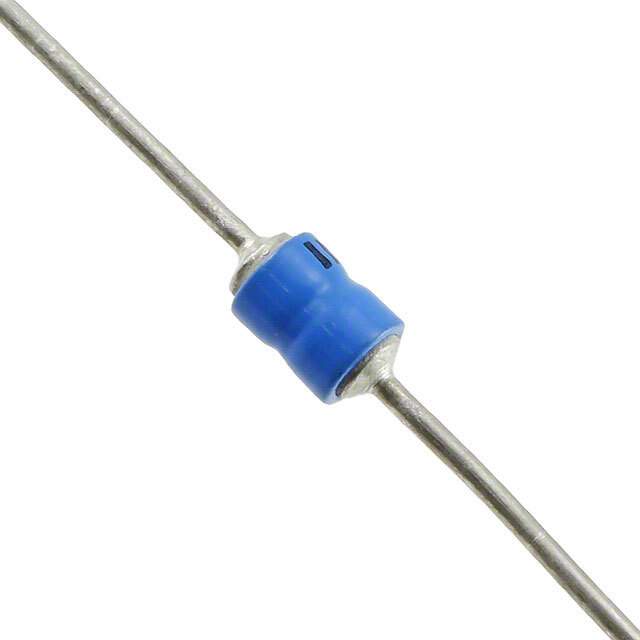

JANTX1N5811 Real Image
Same model may have multiple batches, images only for reference.

JANTX1N5811

Part No JANTX1N5811
Manufacturer Microsemi Corporation
Catalog Diodes, Rectifiers - Single
Description ULTRA FAST RECTIFIERS | DIODE GEN PURP 150V 3A AXIAL
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 150V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Maximum) at If 875mV at 4A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 30ns
Current - Reverse Leakage at Vr 5μA at 150V
Mounting Style Through Hole
Manufacturer Package B, Axial
Operating Temperature - Junction -65°C ~ 175°C
Family Part Number 1N5811
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1191454-JANTX1N5811
Manufacturer Homepage www.microsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian JANTX1N5811 CAD Model

Description

The Microsemi Corporation standard diode is a fast recovery diode with a maximum average rectified current of 3A and a reverse recovery time of 30ns.

  • Maximum Reverse Voltage: 150V
  • Forward Voltage: 875mV @ 4A
  • Mounting Type: Through-Hole
  • Operating Temperature: -65℃ to 175℃
  • Package: B, Axial
  • Popularity: Medium
