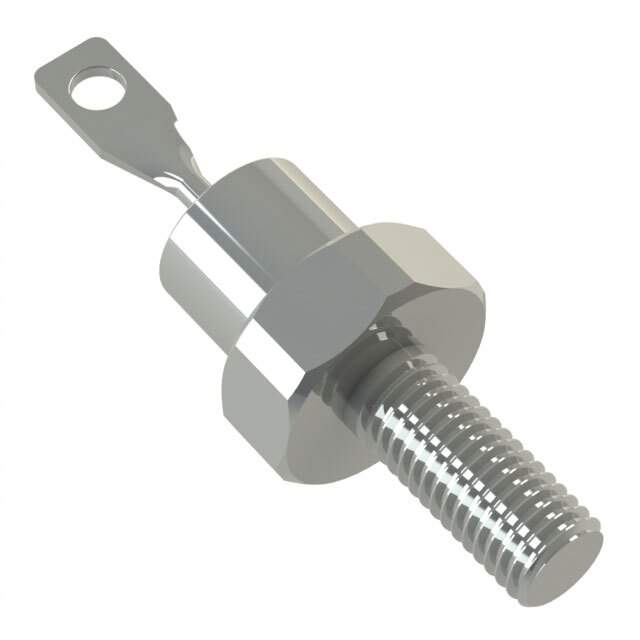

JANTXV1N6391

Part No JANTXV1N6391
Manufacturer Microsemi Corporation
Catalog Diodes, Rectifiers - Single
Description Military Schottky Rectifier | DIODE SCHOTTKY 45V 22.5A DO203AA
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 45V
Current - Average Rectified (Io) 22.5A
Voltage - Forward (Vf) (Maximum) at If 680mV at 50A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 1.5mA at 45V
Capacitance at Vr, F 2000pF at 5V, 1MHz
Mounting Style Chassis, Stud Mount
Manufacturer Package DO-203AA, DO-4, Stud
Supplier Device Package DO-203AA (DO-4)
Operating Temperature - Junction -55°C ~ 175°C
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1191555-JANTXV1N6391
Manufacturer Homepage www.microsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian JANTXV1N6391 CAD Model

Description

The Microsemi Corporation V1N6391 is a Schottky diode designed for use in a wide range of applications, including discrete semiconductor products.

  • Average rectified current: 22.5A
  • Reverse voltage: 45V
  • Voltage forward: 680mV @ 50A
  • Reverse leakage current: 1.5mA @ 45V
  • Mounting Type: Chassis, Stud Mount
  • Operating Temperature: -55°C to 175°C
  • Package / Case: DO-203AA (DO-4)
  • Capacitance: 2000pF @ 5V, 1MHz
  • Popularity: Medium
  • Supply and demand status: Limited
