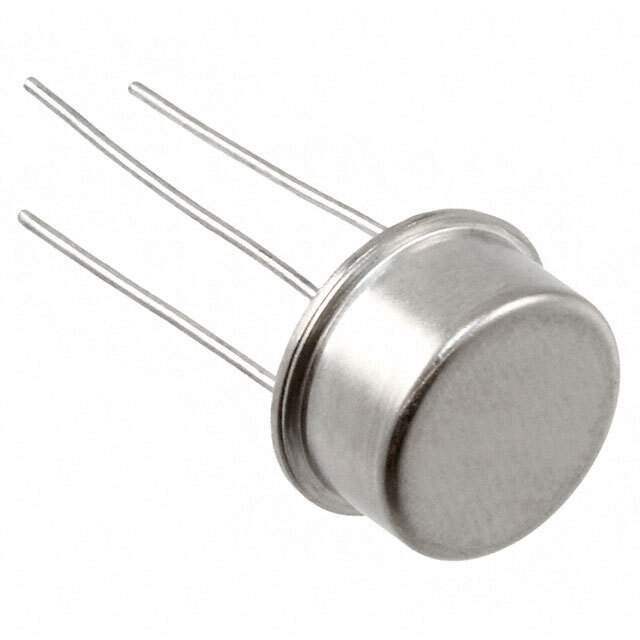

JANTXV2N6802

Get a Quote

Part No	JANTXV2N6802
Manufacturer	Microsemi Corporation
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 500V 2.5A TO205AF / N-Channel 500 V 2.5A (Tc) 800mW (Ta), 25W (Tc) Through Hole TO-205AF (TO-39)
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Microsemi Corporation
Series	Military, MIL-PRF-19500/557
Package	Bulk
Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500 V
Current - Continuous Drain (Id) @ 25°C	2.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.6Ohm @ 2.5A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	33 nC @ 10 V
Vgs (Max)	±20V
Power Dissipation (Max)	800mW (Ta), 25W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-205AF (TO-39)
Package / Case	TO-205AF Metal Can
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	150-JANTXV2N6802,JANTXV2N6802-ND,JANTXV2N6802-MIL
Standard Package	1
Win Source Part Number	1221867-JANTXV2N6802
Ultra Librarian 3D Model	Ultra Librarian JANTXV2N6802 CAD Model

Alternative Products

Description

The JANTXV2N6802 is a military-grade N-Channel MOSFET transistor.

Package: Bulk
Mounting Type: Through-Hole
Drain to Source Voltage (Max): 500V
Continuous Drain Current: 2.5A (Tc) @ 25°C
Rds On (Max) @ Id, Vgs: 1.6Ohm @ 2.5A, 10V
Vgs(th) (Max) @ Id: 4V @ 250μA
Power Dissipation (Max): 800mW (Ta), 25W (Tc)
Gate Charge (Qg) (Max) @ Vgs: 33 nC @ 10V
Vgs (Max): ±20V
Operating Temperature: -55°C to 150°C (TJ)
HTSUS: 8541.29.0095
ECCN: EAR99
Product Status: Obsolete
