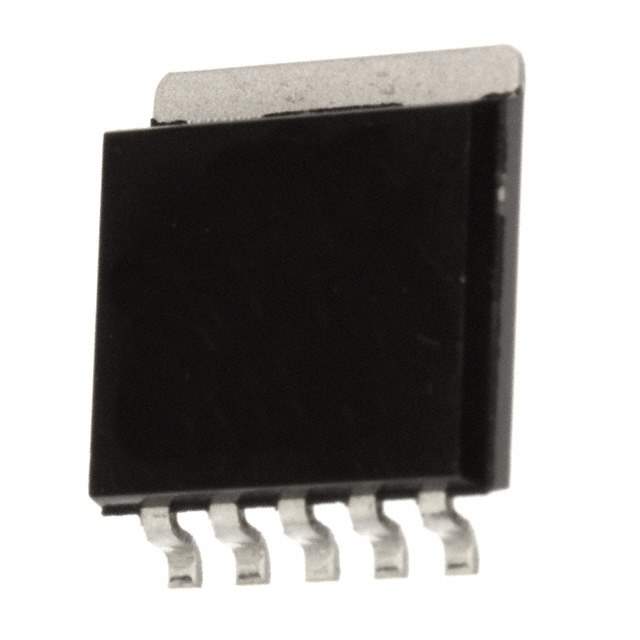

LX8816-04CDF Real Image1 LX8816-04CDF Real Image2
Same model may have multiple batches, images only for reference.
LX8816-04CDF Real Image1 LX8816-04CDF Real Image2
LX8816-04CDF Real Image1 LX8816-04CDF Real Image2
Same model may have multiple batches, images only for reference.

LX8816-04CDF

Part No LX8816-04CDF
Manufacturer Microsemi Corporation
Catalog PMIC - Voltage Regulators - Linear
Description Dual Channel 1A Low Dropout Regulator
Datasheet
LX8816-04CDF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Microsemi Corporation
Packaging Bulk
Part Status Obsolete(EOL)
Output Configuration Positive
Output Type Adjustable (Fixed)
Number of Regulators 2
Voltage Input MAX 10V
Output Voltage 1.25V (3.3V)
Output Voltage MAX 5.5V
Voltage Dropout (Maximum) 1.3V @ 1A, 1.3V @ 1A
Output Current 1A, 1A
Operating Supply Current 3.8mA ~ 6A
PSRR 75dB (120Hz)
Protection Features Over Current, Over Temperature
Operating Temperature Range 0°C ~ 125°C
Mounting SMD
Package SPak-5 (5 leads + Tab)
Manufacturer Package 5-SPAK
Win Source Part Number 1209763-LX8816-04CDF
Manufacturer Homepage www.microsemi.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LX8816-04CDF CAD Model

Description

The Microsemi Corporation LX8816-04CDF is an adjustable (fixed) dual regulator with a maximum output voltage of 5.5V.

  • Package: SPak-5
  • Operating Temperature: 0°C to 125°C
  • Output Current: 1A, 1A
  • Operating Supply Current: 3.8mA ~ 6A
  • Voltage Dropout: 1.3V @ 1A, 1.3V @ 1A
  • PSRR: 75dB (120Hz)

The LX8816-04CDF is suitable for use in various applications, including audio equipment, automotive, and industrial.
