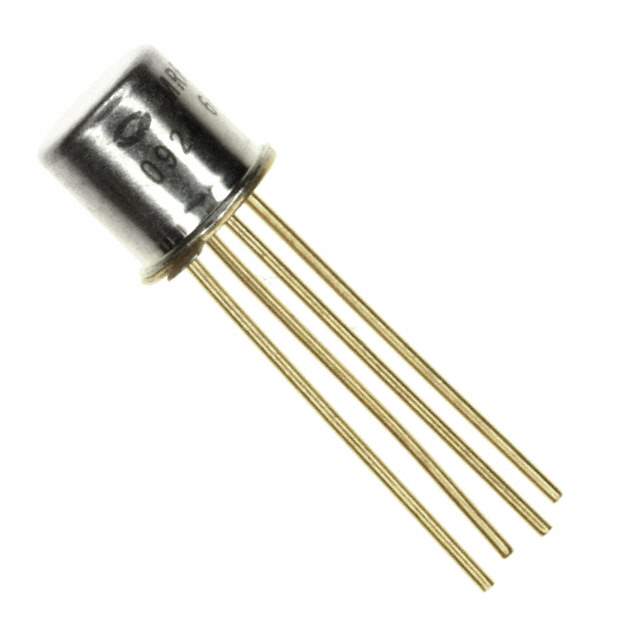

MRF904 Real Image
Same model may have multiple batches, images only for reference.

MRF904

Part No MRF904
Manufacturer Microsemi Corporation
Catalog RF Transistors (BJT)
Description TRANS NPN 15V 30MA TO-72
Datasheet
MRF904 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Status Obsolete(EOL)
Transistor Polarity NPN
VCEO Maximum Collector-Emitter Breakdown Voltage 15V
Frequency - Transition 4GHz
Noise Figure (dB Typ @ f) 1.5dB @ 450MHz
Gain 6.5dB to 10.5dB
Maximum Power Dissipation 200mW
Typical Gain (hFE) (Min) 30 @ 5mA, 5V
Maximum Current Collector 30mA
Temperature Range - Operating 200°C (TJ)
Mounting Through Hole
Case / Package TO-72
Win Source Part Number 045012-MRF904
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Ultra Librarian 3D Model Ultra Librarian MRF904 CAD Model

Description

The Microsemi Corporation TO-72 transistor is a high-performance NPN transistor with a collector-emitter breakdown voltage of 15V and a maximum current collector of 30mA.

  • Typical Gain: 30 @ 5mA and 5V
  • Gain Range: 6.5dB to 10.5dB
  • Frequency of Transition: 4GHz
  • Noise Figure: 1.5dB @ 450MHz
  • Packaging: bulk
  • Mounting: through hole
  • Category: Discrete Semiconductor Products
  • Status: now obsolete (EOL)
  • Temperature Range: 200°C (TJ)
  • Maximum Power Dissipation: 200mW
  • Popularity: medium
