Overview of Texas Instruments LM2673S-5.0

The LM2673S-5.0 is a high-efficiency, step-down DC/DC switching regulator from Texas Instruments, designed to deliver a fixed output voltage of 5V with an output current of up to 3A. This regulator is part of the LM2673 series, which features Simple Switcher® technology to facilitate easy and rapid circuit design. The LM2673S-5.0 is an ideal choice for a wide range of applications, including industrial control, automotive systems, and portable devices that require efficient power management solutions.

Key Features

• Output Voltage: Provides a fixed 5V output, which is a common requirement for digital circuits and microcontroller-based systems.
• High Efficiency: With an efficiency of up to 92%, this regulator ensures minimal heat generation and maximizes battery life in portable applications.
• Output Current: Capable of delivering up to 3A of output current, making it suitable for powering a wide range of devices.
• Adjustable Switching Frequency: The switching frequency can be adjusted up to 260kHz, allowing flexibility in choosing the size of external components.
• Thermal Shutdown and Current Limit: Integrated protection features safeguard the regulator and the downstream circuitry from damage due to excessive heat and overcurrent conditions.

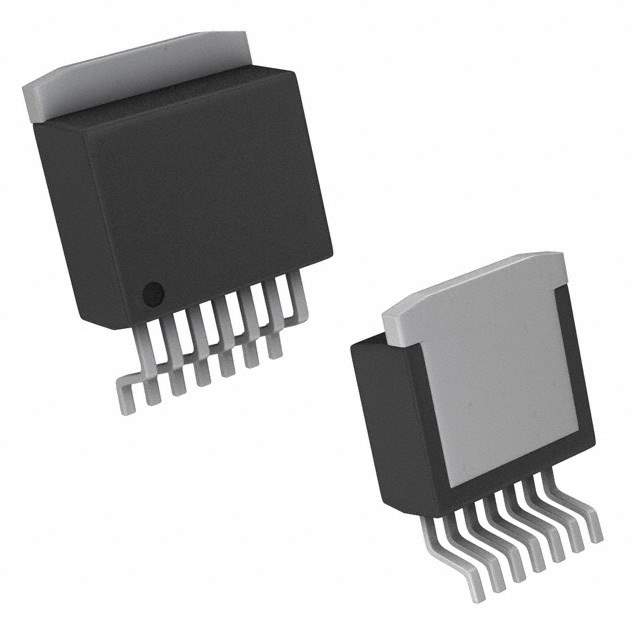

• Innovative Packaging: Housed in a TO-263 package, the LM2673S-5.0 is designed for efficient heat dissipation and space-saving on PCBs.

Applications

The versatility of the LM2673S-5.0 makes it suitable for a variety of applications, including:

• Point of Load (POL) conversions
• Embedded systems
• Networking and telecommunication equipment
• Automotive electronics
• Battery-powered devices

Design and Implementation

Integrating the LM2673S-5.0 into a circuit is made easier with its Simple Switcher® feature, which simplifies the design process. The regulator requires only a few external components, such as an inductor, diode, and capacitors, to create a complete power supply solution. Additionally, Texas Instruments provides comprehensive design tools and resources, including datasheets, application notes, and online simulation tools, to assist engineers in optimizing their designs for performance and reliability.

With its robust feature set and ease of use, the LM2673S-5.0 from Texas Instruments stands out as a reliable and efficient solution for modern electronic power supply requirements.
