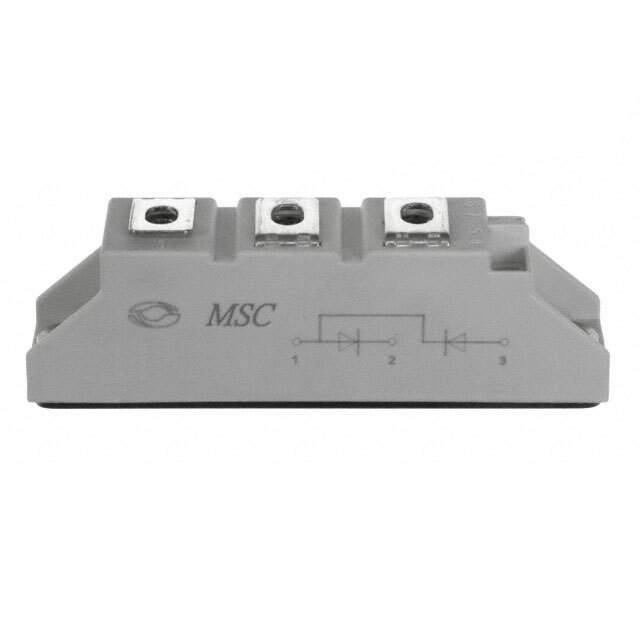

MSCD70-16 Real Image
Same model may have multiple batches, images only for reference.

MSCD70-16

Part No MSCD70-16
Manufacturer Microsemi Corporation
Catalog Diodes, Rectifiers - Arrays
Description DIODE MODULE 1.6KV 70A D1 / Diode Array 1 Pair Series Connection Standard 1600 V 70A Chassis Mount D1
Datasheet
MSCD70-16 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Microsemi Corporation
Package Bulk
Product Status Obsolete
Diode Configuration 1 Pair Series Connection
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1600 V
Current - Average Rectified (Io) (per Diode) 70A
Voltage - Forward (Vf) (Max) @ If 1.48 V @ 200 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 5 mA @ 1600 V
Mounting Type Chassis Mount
Package / Case D1
Supplier Device Package D1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 150-MSCD70-16,MSCD70-16MP-ND,MSCD70-16MP,MSCD70-16-ND
Standard Package 1
Win Source Part Number 958240-MSCD70-16
Ultra Librarian 3D Model Ultra Librarian MSCD70-16 CAD Model

Description

The Microsemi Corporation 958240-MSCD70-16 is a pair of series-connected standard diodes that can handle an average rectified current of 70A.

  • Current (Average Rectified): 70A
  • Voltage (DC Reverse, Max): 1600V
  • Voltage (Forward) @ Current: 1.48V @ 200A
  • Current (Reverse Leakage) @ Voltage: 5mA @ 1600V
  • Suitable for: Rectifier circuits
  • Package Type: D1
  • Mounting Type: Chassis mounting
  • Packaging: Bulk
  • Standard Package: One
  • Recovery Type: Standard
  • Speed: Over 500ns
  • Current Rating: Over 200mA
  • Status: Obsolete
  • Availability: Alternative parts available
