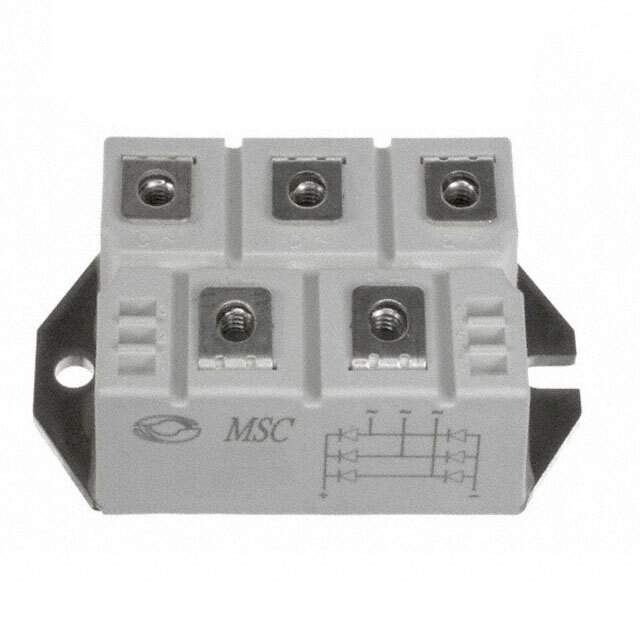

MSD160-16 Real Image
Same model may have multiple batches, images only for reference.

MSD160-16

Part No MSD160-16
Manufacturer Microsemi Corporation
Catalog Bridge Rectifiers
Description BRIDGE RECT 3PHASE 1.6KV 160A M3 / Glass Passivated Three Phase Rectifier Bridge
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Microsemi Corporation
Packaging Bulk
Part Status Obsolete (End Of Life)
Diode Type Three Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 1.6kV
Current - Average Rectified (Io) 160A
Voltage - Forward (Vf) (Maximum) at If 1.65V at 300A
Current - Reverse Leakage at Vr 500μA at 1600V
Temperature Range - Operating -40°C ~ 150°C
Mounting Style Chassis Mount
Manufacturer Package M3
Supplier Device Package M3
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810886-MSD160-16
Ultra Librarian 3D Model Ultra Librarian MSD160-16 CAD Model

Description

The Microsemi Corporation MSD160-16 is an obsolete (end of life) electronic component manufactured by Microsemi Corporation.

  • Win Source Part Number: 810886-MSD160-16
  • Manufacturer Homepage: www.microsemi.com
  • Diode Type: Three-Phase
  • Current - Average Rectified (Io): 160A
  • Voltage - Peak Reverse (Maximum): 1.6kV
  • Device Package: M3
  • Operating Temperature: -40°C ~ 150°C
