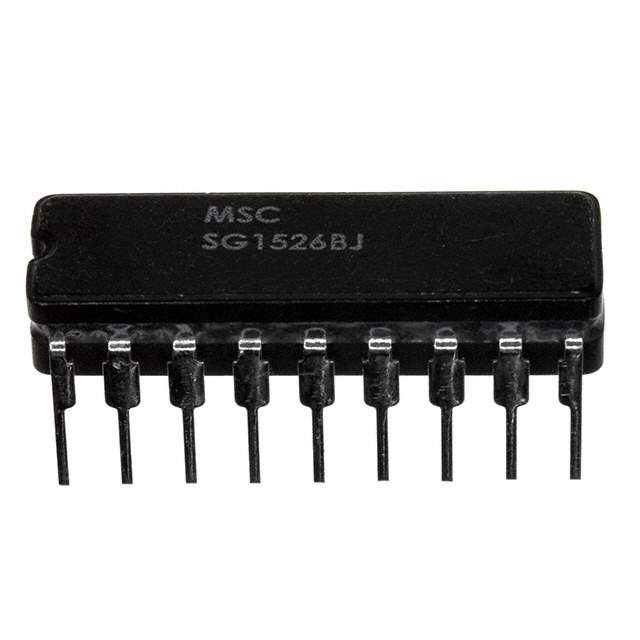

SG1526BJ-883B Real Image
Same model may have multiple batches, images only for reference.

SG1526BJ-883B

Part No SG1526BJ-883B
Manufacturer Microsemi Corporation
Catalog PMIC - Voltage Regulators - DC DC Switching Controllers
Description IC REG CTRLR BUCK/FLYBACK 18JDIP / Voltage Mode PWM Controller 100mA 500kHz 18-Pin CDIP Tube
Datasheet
SG1526BJ-883B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Microsemi Corporation
Series Military, MIL-STD-883
Packaging Tube
Output Type Transistor Driver
Function Step-Down, Step-Up/Step-Down
Output Configuration Positive
Topology Buck, Flyback
Number of Outputs 2
Output Phases 1
Supply Voltage 8 V ~ 35 V
Frequency - Switching 1Hz ~ 500kHz
Duty Cycle (Maximum) 49%
Synchronous Rectifier Yes
Clock Sync No
Control Features Enable, Reset, Soft Start
Operating Temperature Range -55°C ~ 125°C (TJ)
Package 18-CDIP (0.300", 7.62mm)
Manufacturer Package 18-CDIP
Win Source Part Number 794169-SG1526BJ-883B
Popularity Medium
Supply and Demand Status Limited
Family Name SG1526B
Introduction Date June 18, 1997
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian SG1526BJ-883B CAD Model

Description

The SG1526BJ-883B is a step-down/step-up DC-DC switching controller, manufactured by Microsemi Corporation.

  • Package: 18-CDIP (0.300", 7.62mm)
  • Standard Package: 2,500
  • Output Configuration: Positive
  • Topology: Buck/Flyback
  • Switching Frequency: 1Hz ~ 500kHz
  • Control Features: Enable, Reset, Soft Start
  • Synchronous Rectifier: Yes
  • Operating Temperature: -55°C to 125°C (TJ)
  • Operating Supply Voltage: 8 V ~ 35 V
  • Outputs: Two
