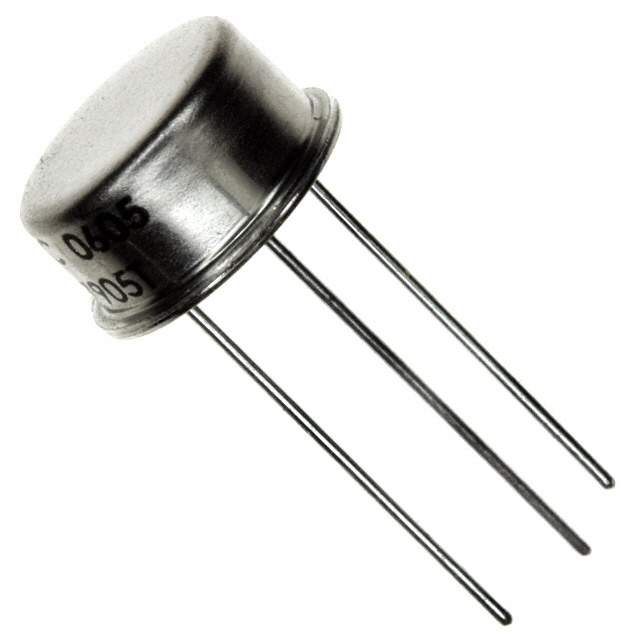

SG7815AT Real Image
Same model may have multiple batches, images only for reference.

SG7815AT

Part No SG7815AT
Manufacturer Microsemi Corporation
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 15V 0.5A TO39
Datasheet
SG7815AT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Microsemi Corporation
Packaging Tray
Status Active
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 35V
Nominal Output Voltage (Min/Fixed) 15V
Dropout Voltage-Max 2.5V @ 500mA
Output Current 500mA
Operating Supply Current 7mA
PSRR 60dB (120Hz)
Control Protection Features Over Current, Over Temperature
Temperature Range - Operating -55°C to 125°C
Regulator Topology Positive Fixed
Output Voltage 15V
Voltage - Dropout (Typical) 2V @ 500mA
Mounting Through Hole
Case / Package TO-39
Win Source Part Number 211590-SG7815AT
Popularity Medium
Supply and Demand Status Limited
Quantity per package 150
Ultra Librarian 3D Model Ultra Librarian SG7815AT CAD Model

Description

The SG7815AT from Microsemi Corporation is a positive fixed regulator that is designed for use in a range of electronic applications.

  • Maximum Input Voltage: 35V
  • Nominal Output Voltage: 15V
  • Dropout Voltage: 2V @ 500mA
  • Output Current: 500mA
  • PSRR: 60dB (120Hz)
  • Features: Over current and over temperature protection
  • Case/Package: TO-39
  • Packaging: Tray
  • Applications: Perfect for use in a range of applications including power supplies, motor control, and DC-DC converters
