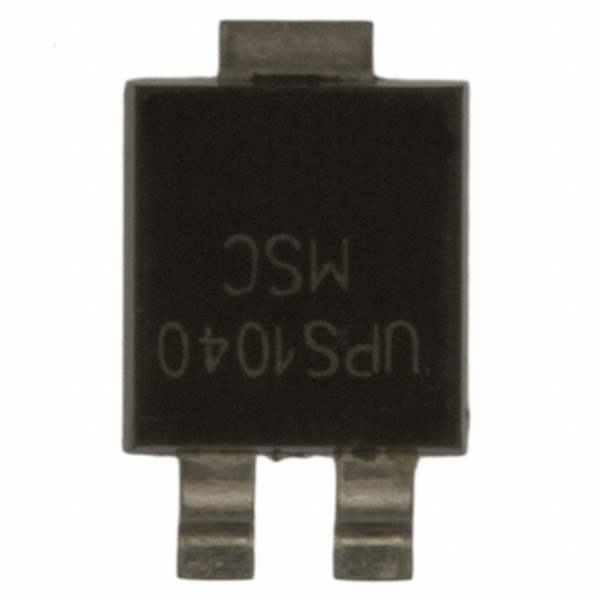

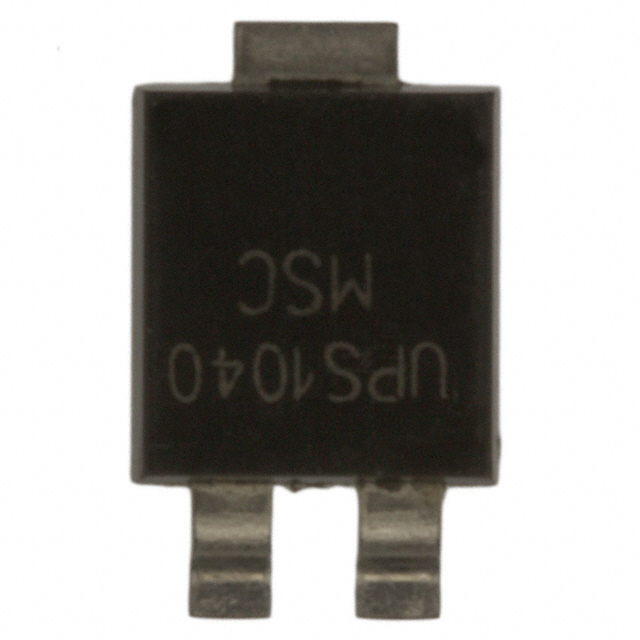

UPS1040E3/TR13 Microsemi Corporation
Same model may have multiple batches, images only for reference.

UPS1040E3/TR13

Part No UPS1040E3/TR13
Manufacturer Microsemi Corporation
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 10A POWERMITE
Datasheet
UPS1040E3/TR13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Reel - TR
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 10A
Voltage - Forward (Vf) (Max) @ If 510mV @ 10A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 300μA @ 35V
Capacitance @ Vr, F 700pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package Powermite 3
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 097866-UPS1040E3/TR13
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Power Management, Portable Devices, Consumer Electronics, Communications & Networking, Computers & Computer Peripherals, Automotive
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian UPS1040E3/TR13 CAD Model

Description

The UPS1040E3/TR13 is a Schottky diode manufactured by Microsemi Corporation.

  • GPTDescription: It is designed for use in power management, portable devices, consumer electronics, communications and networking, computers and computer peripherals, and automotive applications.
  • GPTDescription: The diode is packaged in a Powermite 3 case and is mounted using SMD (SMT) technology.
  • GPTDescription: It has a voltage rating of 40V and a current rating of 10A.
  • GPTDescription: The UPS1040E3/TR13 has a fast recovery speed and a low forward voltage.
  • GPTDescription: The supply and demand status for this product is sufficient.
