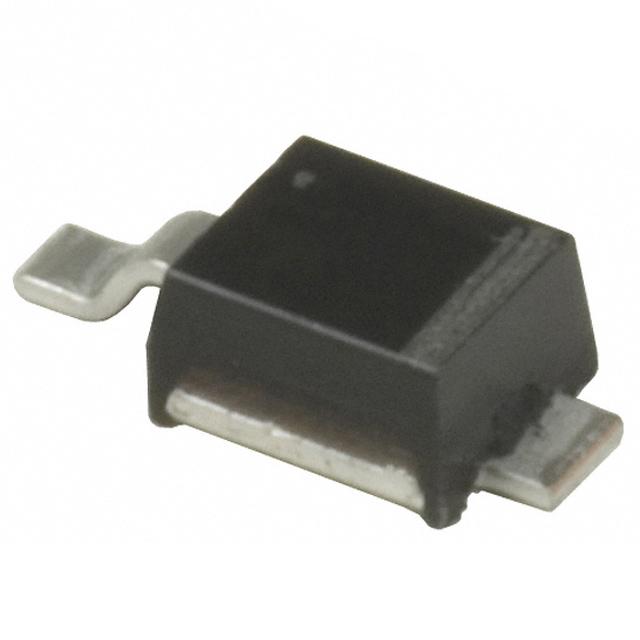

Same model may have multiple batches, images only for reference.
UPT12E3 Microsemi Corporation
Same model may have multiple batches, images only for reference.

UPT12E3

Part No UPT12E3
Manufacturer Microsemi Corporation
Catalog TVS - Diodes
Description TVS DIODE 12VWM 21.6VC PWRMITE1
Datasheet
UPT12E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Microsemi Corporation
Packaging Cut Reel
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 12V
Minimum Breakdown Voltage 13.8V
Max Clamping Voltage 21.6V
Peak Pulse Current(Ippm) 6.94A
Power Dissipation - Pd 1000W (1kW)
Applications General Purpose
Temperature Range - Operating -65°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package Powermite 1 (DO216-AA)
Win Source Part Number 1116678-UPT12E3
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian UPT12E3 CAD Model

Description

The Zener, with part number 1116678-UPT12E3, is a unidirectional channel general-purpose circuit protection electronic component.

  • Manufacturer: Microsemi Corporation
  • Mounting Type: SMD (SMT)
  • Case or Package: Powermite 1 (DO216-AA)
  • STAND-OFF Voltage (Vwm): 12V
  • Minimum Breakdown Voltage: 13.8V
  • Maximum Clamping Voltage: 21.6V
  • Peak Pulse Current (Ippm): 6.94A
  • Power Dissipation - Pd: 1000W (1kW)
  • Temperature Range - Operating: -65°C to 150°C (TJ)
  • Supply and Demand Status: Balanced
