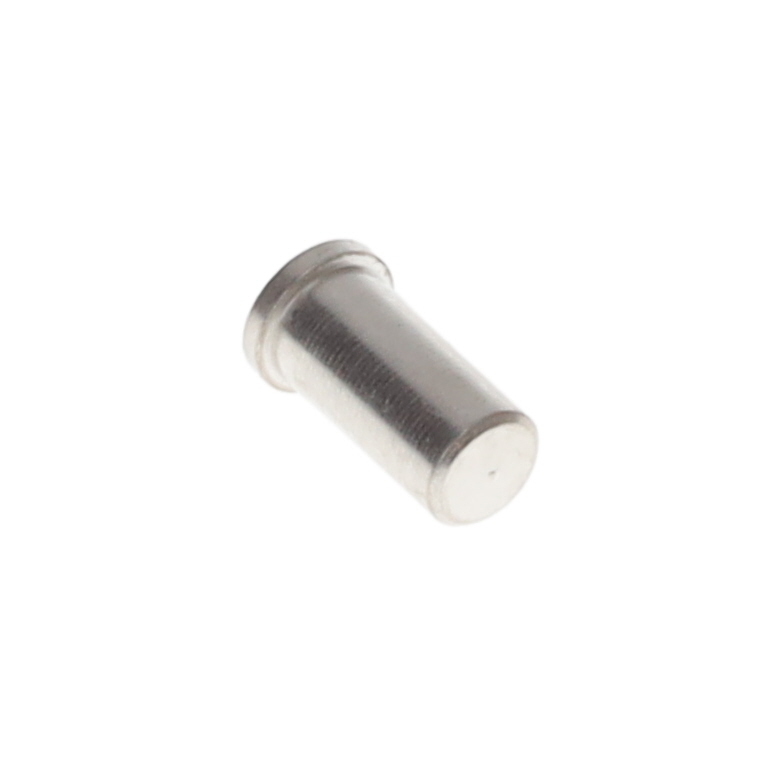

0293-0-15-80-16-80-10-0 Mill-Max Manufacturing Corp. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

0293-0-15-80-16-80-10-0

Part No 0293-0-15-80-16-80-10-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Terminals - PC Pin Receptacles, Socket Connectors
Description CONN PIN RCPT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Tail Type No Tail
Termination Press-Fit
Length - Overall 0.200" (5.08mm)
Accepts Pin Diameter 0.022" ~ 0.034" (0.56mm ~ 0.86mm)
Accepts Square Pin Size 0.025" (0.64mm)
Pin Hole Diameter 0.051" (1.30mm)
Mounting Hole Diameter 0.067" (1.70mm)
Flange Diameter 0.086" (2.18mm)
Socket Depth 0.170" (4.32mm)
Contact Material Beryllium Copper
Contact Finish Tin
Contact Finish Thickness 200.0µin (5.08µm)
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1629211-0293-0-15-80-16-80-10-0
Ultra Librarian 3D Model Ultra Librarian 0293-0-15-80-16-80-10-0 CAD Model
