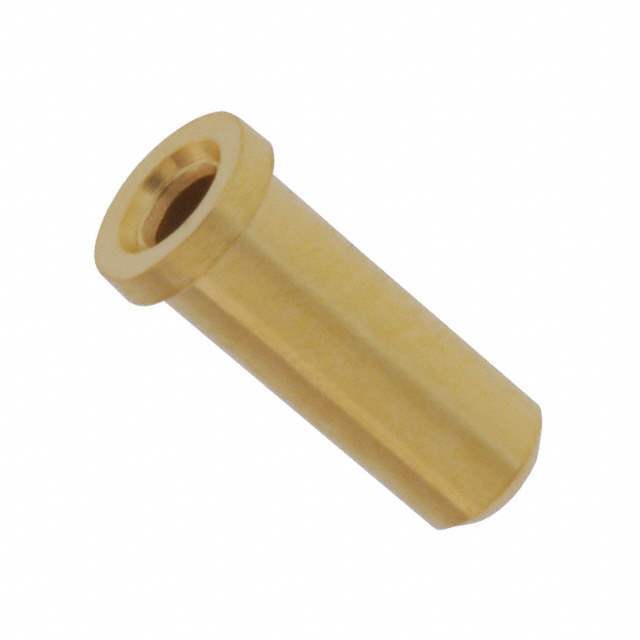

Same model may have multiple batches, images only for reference.
0294-0-15-15-06-27-10-0 Mill-Max Manufacturing Corp.
Same model may have multiple batches, images only for reference.

0294-0-15-15-06-27-10-0

Part No 0294-0-15-15-06-27-10-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Terminals
Description CONN PIN RCPT .022-.032 SOLDER
Datasheet
0294-0-15-15-06-27-10-0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Mill-Max Manufacturing Corp.
Packaging Bulk
Part Status Active
Tail Type No Tail
Termination Solder
Length - Overall 0.206" (5.23mm)
Accepts Pin Diameter 0.022" ~ 0.032" (0.56mm ~ 0.81mm)
Contact Material Beryllium Copper
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Operating Temperature -55°C ~ 125°C
Ultra Librarian 3D Model Ultra Librarian 0294-0-15-15-06-27-10-0 CAD Model

Description

Pin Receptacle Connector 0.022" ~ 0.032" (0.56mm ~ 0.81mm) No Tail Solder
