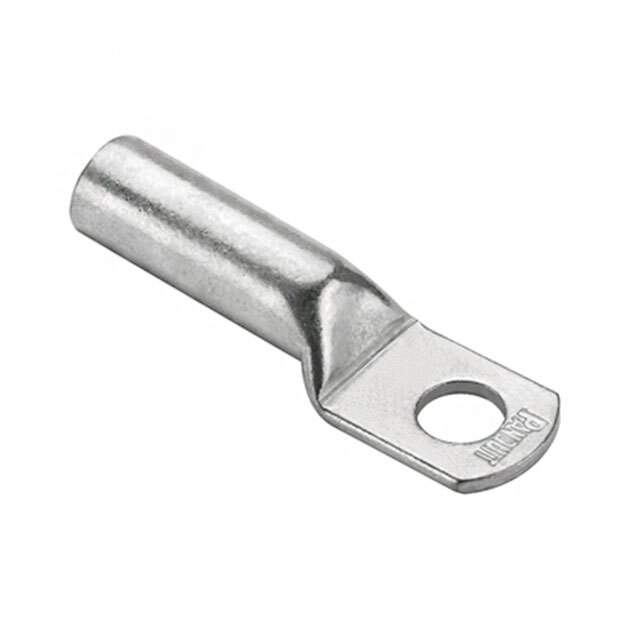

LCMB150-16-X Real Image
Same model may have multiple batches, images only for reference.

LCMB150-16-X

Part No LCMB150-16-X
Manufacturer Panduit Corp
Catalog Terminals
Description CONN TERM RECT RING 150MM #M16
Datasheet
LCMB150-16-X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panduit Corp
Packaging Bulk
Status Active
Terminal Type Ring, Tubular
Stud/Tab Size M16 Stud
Terminal Style Single Stud Hole
Tab Thickness 0.169" (4.29mm)
Length - Overall 3.937" (100.00mm)
Width - Outer Edges 1.201" (30.51mm)
Mounting Free Hanging (In-Line)
Termination Crimp, Barrel
Wire Gauge 150mm2
Insulation Non-Insulated
Contact Finish Tin
Diameter - Barrel ID 0.650" (16.51mm)
Diameter - Barrel OD 0.827" (21.01mm)
Diameter - Ring ID 0.709" (18.01mm)
Win Source Part Number 141701-LCMB150-16-X
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LCMB150-16-X CAD Model

Description

The Panduit Corp LCMB150-16-X terminal is a crimp, barrel termination with a tin contact finish.

  • Wire Gauge: 150mm2
  • Mounting Type: free hanging (in-line)
  • Terminal Type: ring, tubular
  • Width: 1.201 inches (30.51mm)
  • Overall Length: 3.937 inches (100.00mm)
  • Insulation: non-insulated
  • Tab Thickness: 0.169 inches (4.29mm)
  • Stud/Tab Size: M16 stud
  • Terminal Style: a single stud hole
  • Barrel ID Diameter: 0.650 inches (16.51mm)
  • Barrel OD Diameter: 0.827 inches (21.01mm)
  • Ring ID Diameter: 0.709 inches (18.01mm)
  • Category: connectors, interconnects
  • Supply and Demand Status: limited.
