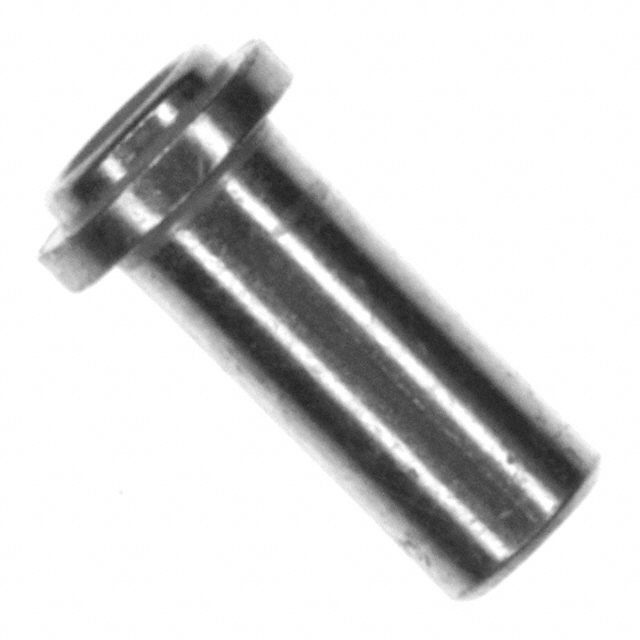

0360-0-15-15-34-27-10-0 Mill-Max Manufacturing Corp. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

0360-0-15-15-34-27-10-0

Part No 0360-0-15-15-34-27-10-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Terminals - PC Pin Receptacles, Socket Connectors
Description CONN PIN RCPT .032-.046 KNURL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Tail Type No Tail
Termination Press-Fit, Knurled
Length - Overall 0.250" (6.35mm)
Accepts Pin Diameter 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Pin Hole Diameter 0.064" (1.63mm)
Mounting Hole Diameter 0.090" (2.29mm)
Flange Diameter 0.110" (2.79mm)
Socket Depth 0.250" (6.35mm)
Contact Material Beryllium Copper
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1629235-0360-0-15-15-34-27-10-0
Ultra Librarian 3D Model Ultra Librarian 0360-0-15-15-34-27-10-0 CAD Model

Description

N
