Same model may have multiple batches, images only for reference.

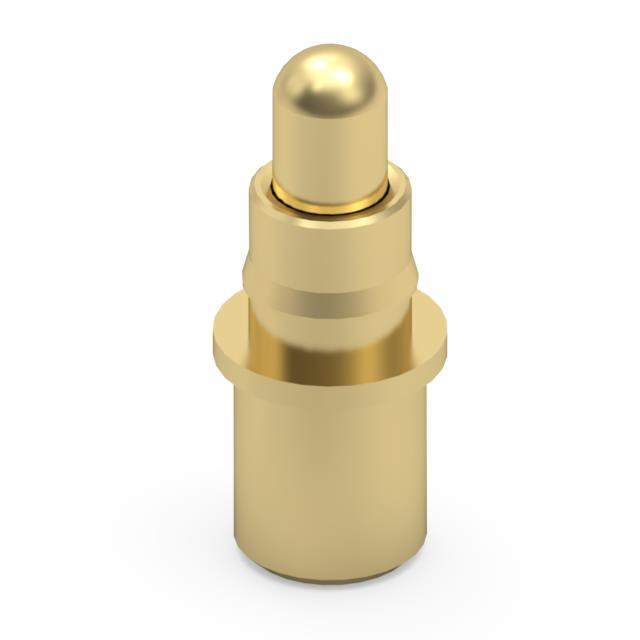

0926-1-15-20-75-14-11-0 Real Image
Same model may have multiple batches, images only for reference.

0926-1-15-20-75-14-11-0

Part No 0926-1-15-20-75-14-11-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Contacts, Spring Loaded and Pressure
Description CONTACT SPRING LOADED T/H GOLD / Contact Spring Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Contacts, Spring Loaded (Pogo Pins), and Pressure
Mfr Mill-Max Manufacturing Corp.
Series 0926
Package Bulk
Contact Type Sleeve & Plunger (Pogo Pins)
Mounting Type Through Hole
Maximum Working Height 0.125" (3.18mm)
Recommended Working Height 0.098" (2.50mm)
Minimum Working Height 0.070" (1.78mm)
Pad Layout Dimension Circular - 0.085" (2.16mm) (TH)
Operating Force - Initial 25gf
Operating Force - Mid Compression 60gf
Plunger Size 0.042" (1.07mm) Dia
Mating Cycles 1000000
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 20.0µin (0.51µm)
Current Rating (Amps) 2A
Temperature Range - Operating -55°C ~ 125°C
Base Product Number 0926-1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 9.26115E+14,ED1652
Standard Package 500
Win Source Part Number 1033979-0926-1-15-20-75-14-11-0
Ultra Librarian 3D Model Ultra Librarian 0926-1-15-20-75-14-11-0 CAD Model

Description

The 1033979-0926-1-15-20-75-14-11-0 is a connector component manufactured by Mill-Max Manufacturing Corp.

  • Circular Pad Layout Dimension: 0.085"
  • Recommended Working Height: 0.098"
  • Current Rating: 2A
  • Temperature Range: -55°C to 125°C
  • Supply and Demand Status: limited
