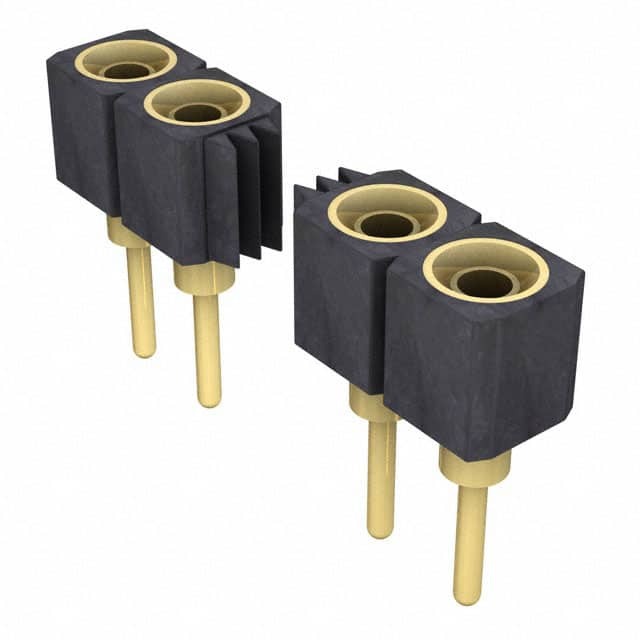

The 1201795-310-13-118-41-001000 is a rectangular connector from Mill-Max Manufacturing Corp.

• Manufacturer: Mill-Max Manufacturing Corp.
• Product Name: 1201795-310-13-118-41-001000
• Pitch: 0.100" (2.54mm)
• Positions: 18
• Connector Type: Receptacle
• Connector Style: Female Socket
• Fastening Type: Push-Pull
• Contact Finish (Mating): Gold
• Contact Finish Thickness (Mating): 30.0µin (0.76µm)
• Contact Finish (Post): Gold
• Contact Finish Thickness (Post): 10.0µin (0.25µm)
• Voltage Rating: 100V, 150VDC
• Current Rating: 3A
• Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
• Material Flammability Rating: UL94 V-0
• Mounting Type: Through-Hole
• Temperature Range: -55°C to 125°C
