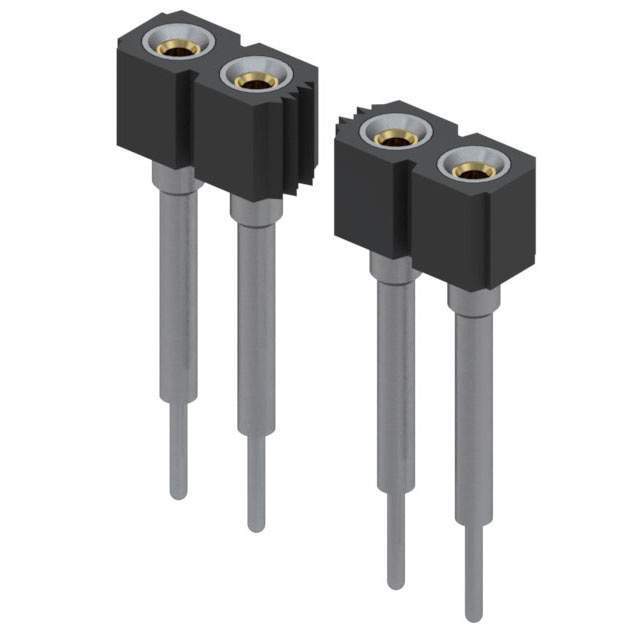

Same model may have multiple batches, images only for reference.

316-43-142-41-007000

Name: 316-43-142-41-007000
Brand: Mill-Max Manufacturing Corp.
SKU: 763594
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	316-43-142-41-007000
Manufacturer	Mill-Max Manufacturing Corp.
Catalog	Rectangular Connectors
Description	CONN SCKT STRIP 42PIN .100 L.402
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Mill-Max Manufacturing Corp.
Series	316
Packaging	Bulk
Connector Type	Elevated Socket
Contact Type	Female Socket
Style	Board to Board
Number of Positions	42
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30μin (0.76μm)
Insulation Color	Black
Insulation Height	0.402" (10.20mm)
Contact Length - Post	0.118" (3.00mm)
Operating Temperature Range	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating	3A
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Contact Shape	Circular
Contact Material	Beryllium Copper
Contact Finish Thickness - Post	200μin (5.08μm)
Win Source Part Number	763594-316-43-142-41-007000
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	1
Family Name	316
Introduction Date	May 07, 2009
ECCN	EAR99
Country of Origin	United States of America
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian 316-43-142-41-007000 CAD Model

Alternative Products

Description

The Mill-Max Manufacturing Corp. 316 Series is a board-to-board connector with a pitch of 0.100 inches (2.54mm).

Series: 316
Pitch: 0.100 inches (2.54mm)
Connector Type: Elevated socket
Contact Type: Female socket
Positions: Up to 42
Mounting: Through-hole
Fastening Type: Push-pull
Contact Material: Beryllium copper
Current Rating: 3A
Flammability Rating: UL94 V-0
Insulation Material: Polycyclohexylenedimethylene terephthalate (PCT) and polyester
