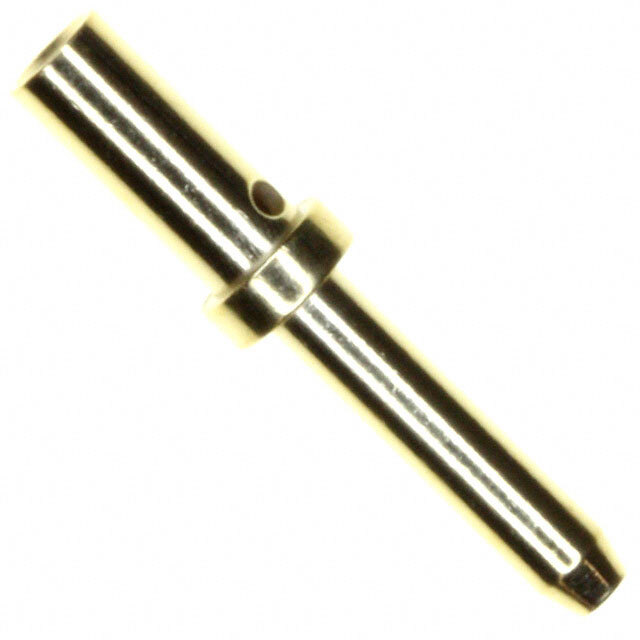

3601-3-07-01-00-00-08-0

Part No 3601-3-07-01-00-00-08-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Terminals - PC Pin, Single Post Connectors
Description CONN PC PIN CIRC .080DIA TINLEAD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Terminal Type PC Pin
Terminal Style Wire
Pin Size - Above Flange 0.080" (2.03mm) Dia
Length - Above Flange 0.500" (12.70mm)
Length - Below Flange 0.275" (6.99mm)
Length - Overall 0.806" (20.47mm)
Flange Diameter 0.102" (2.59mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Insulation Non-Insulated
Contact Material Brass Alloy
Contact Finish Tin-Lead
Contact Finish Thickness 200.0µin (5.08µm)
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1629862-3601-3-07-01-00-00-08-0
Ultra Librarian 3D Model Ultra Librarian 3601-3-07-01-00-00-08-0 CAD Model
