829-22-001-20-002101 Mill-Max Manufacturing Corp.
Same model may have multiple batches, images only for reference.

829-22-001-20-002101

Part No 829-22-001-20-002101
Manufacturer Mill-Max Manufacturing Corp.
Catalog Rectangular Connectors

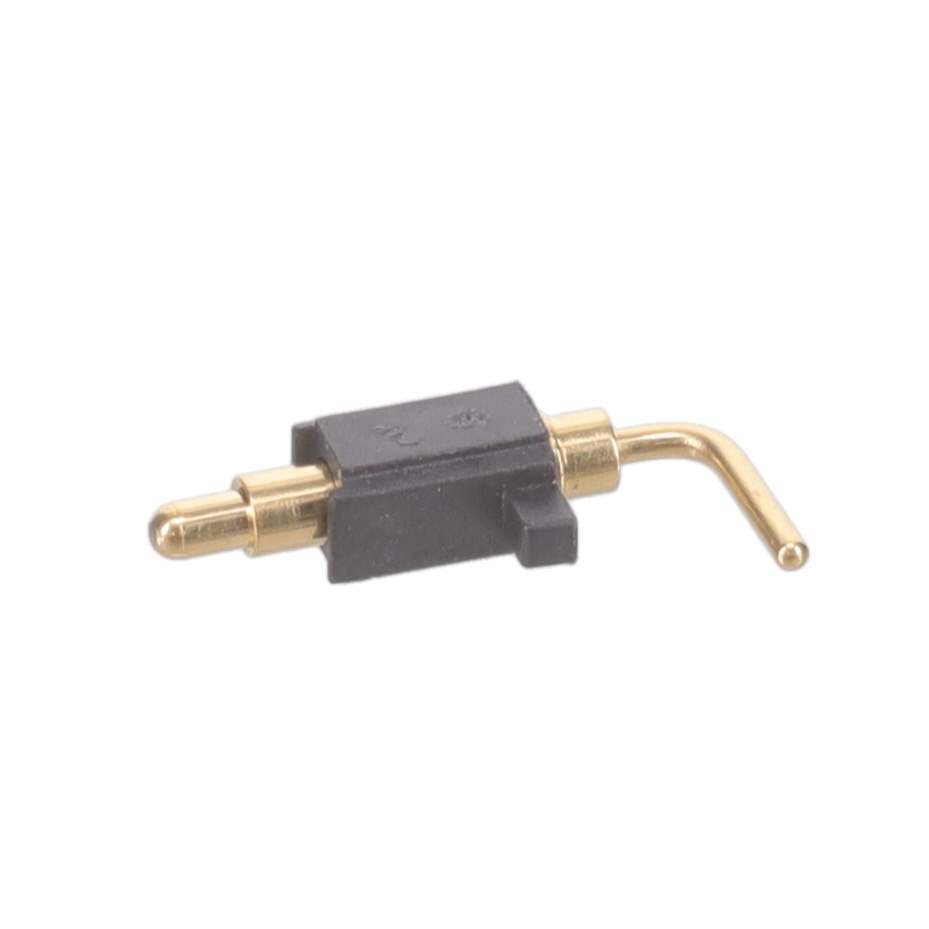

Description CONN SPRING PISTON 1POS R/A PCB
Datasheet
829-22-001-20-002101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1305296-829-22-001-20-002101
Manufacturer Mill-Max Manufacturing Corp.
Category Connectors, Interconnects-Rectangular Connectors-Spring Loaded
Packaging  Bulk
Part Status Active
Connector Type Piston
Number of Contacts 1
Number of Rows 1
Mounting Type Through Hole, Right Angle
Material Copper Alloy
Contact Finish Gold
Ultra Librarian 3D Model Ultra Librarian 829-22-001-20-002101 CAD Model

Description

• Modular contacts for use on .100” grid. Supplied in single row strips with mounting pegs for support
• Precision-machined piston / base and gold-plated components assure up to 1,000,000 cycle life durability
• Low resistance, high current contacts are rated at 2 amps continuous, 3 amps peak
• High temperature thermoplastic insulators are suitable for wave and reflow processes
• 829 series contact strips are designed for manual placement into Ø .037”±.003” plated through-holes in the circuit board prior to wave or reflow soldering
