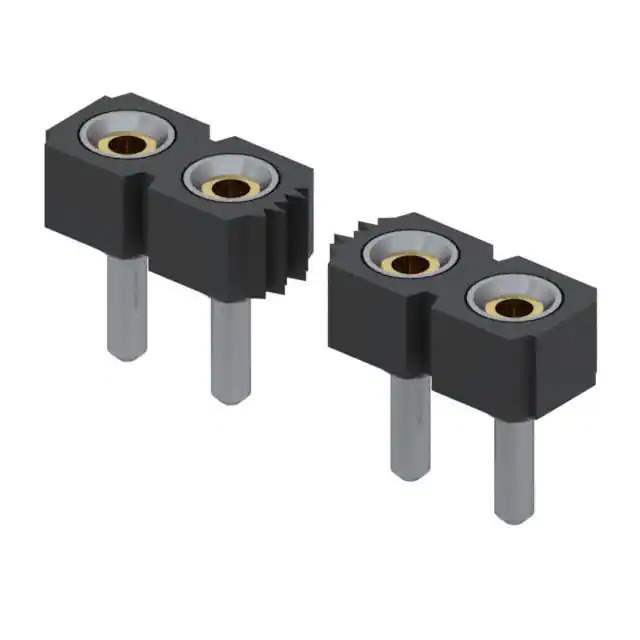

315-47-120-41-001000 Real Image
Same model may have multiple batches, images only for reference.

315-47-120-41-001000

Part No 315-47-120-41-001000
Manufacturer Mill-Max Manufacturing Corp.
Catalog Rectangular Connectors
Description CONN RCPT 20POS 0.1 GOLD PCB / 20 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Datasheet
315-47-120-41-001000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Mill-Max Manufacturing Corp.
Series 315
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 20
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating Flash
Insulation Color Black
Insulation Height 0.110" (2.79mm)
Contact Length - Post 0.108" (2.75mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 3A
Voltage Rating 100V, 150VDC
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT) , Polyester
Contact Shape Circular
Contact Material Beryllium Copper
Contact Finish Thickness - Post 200.0µin (5.08µm)
Base Product Number 315-47
Standard Package 10
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1337518-315-47-120-41-001000
Ultra Librarian 3D Model Ultra Librarian 315-47-120-41-001000 CAD Model

Description

The 315 series receptacle connector is a board-to-board connector that is perfect for high-density applications.

  • Positions: 20
  • Fastening Type: Push-Pull
  • Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT) and Polyester
  • Contact Plating: Gold
  • Contact Material: Beryllium Copper
  • Voltage Rating: 100V
  • Current Rating: 3A
  • Temperature Range: -55°C to 125°C
  • Package: Tube
  • Standard Package: 10
