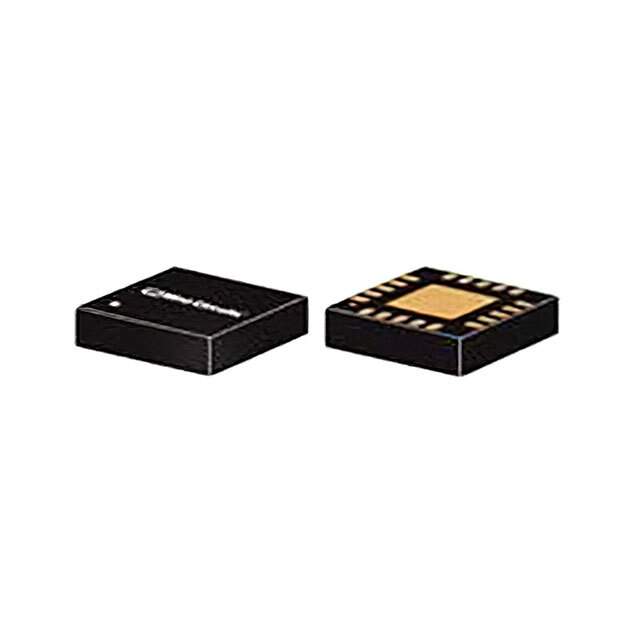

HSWA2-63DR+ Real Image HSWA2-63DR+ Real Image
Same model may have multiple batches, images only for reference.
HSWA2-63DR+ Real Image HSWA2-63DR+ Real Image
HSWA2-63DR+ Real Image HSWA2-63DR+ Real Image
Same model may have multiple batches, images only for reference.

HSWA2-63DR+

Part No HSWA2-63DR+
Manufacturer Mini-Circuits
Catalog RF Switches
Description IC RF SWITCH SPDT 6GHZ 20QFN
Datasheet
HSWA2-63DR+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Estimated Pruduction Lead Time 11 Weeks
Features RF Switch IC General Purpose SPDT 50Ohm 20-QFN (4x4)
Manufacturer Mini-Circuits
Package Reel - TR
Operating Temperature Range -40°C ~ 105°C
Package 20-TFQFN Exposed Pad
Case / Package 20-QFN (4x4)
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 3157-HSWA2-63DR+CT, 3157-HSWA2-63DR+DKR, 3157-HSWA2-63DR+TR
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 873990-HSWA2-63DR+
Ultra Librarian 3D Model Ultra Librarian HSWA2-63DR+ CAD Model

Description

The Mini-Circuits HSWA2-63DR+ is a general-purpose RF switch IC with SPDT and 50Ohm.

  • Applications: RF/IF and RFID
  • Package: 20-TFQFN exposed pad
  • Packaging: reel - TR
  • Operating Temperature Range: -40°C to 105°C
  • ECCN: EAR99
  • Supply and Demand Status: limited
  • Quantity per Package: 1000
  • MSL Level: 3 (168 hours)
  • Estimated Production Lead Time: 11 weeks
  • HTSUS: 8542.39.0001
  • Alternative Part Numbers: 3157-HSWA2-63DR+CT, 3157-HSWA2-63DR+DKR, and 3157-HSWA2-63DR+TR
