Same model may have multiple batches, images only for reference.

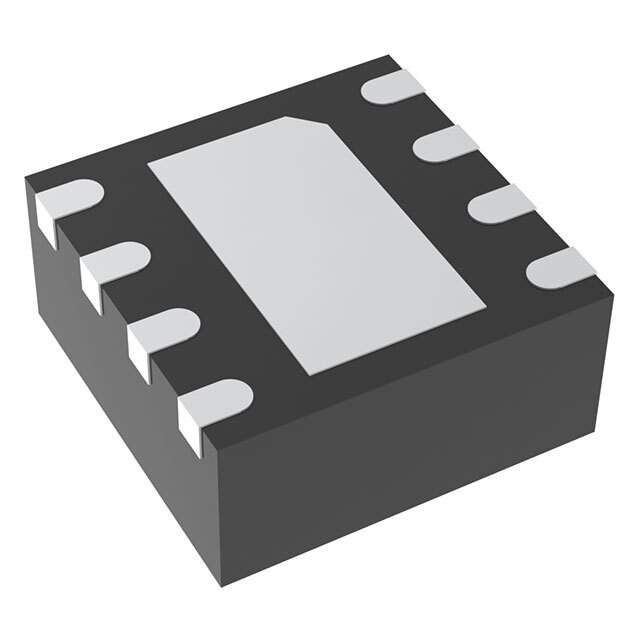

SKY13321-360LF Real Image
Same model may have multiple batches, images only for reference.

SKY13321-360LF

Part No SKY13321-360LF
Manufacturer Skyworks Solutions Inc.
Catalog RF Switches
Description IC RF SWITCH SPDT 3GHZ 8QFN / RF Switch IC WiMax SPDT 3 GHz 50Ohm 8-QFN (2x2)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Switches
Mfr Skyworks Solutions Inc.
Package Tape & Reel
Product Status Obsolete
RF Type WiMax
Topology Reflective
Circuit SPDT
Frequency Range 100MHz ~ 3GHz
Isolation 16dB
Insertion Loss 0.6dB
Test Frequency 3GHz
Impedance 50Ohm
Temperature Range - Operating -40°C ~ 85°C
Package / Case 8-VFDFN Exposed Pad
Supplier Device Package 8-QFN (2x2)
Base Product Number SKY13321
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names 863-1260-2,863-1260-6,SKY13321360LF,863-1260-1
Standard Package 3,000
Win Source Part Number 990797-SKY13321-360LF
Ultra Librarian 3D Model Ultra Librarian SKY13321-360LF CAD Model

Description

The Skyworks Solutions Inc. SKY13321-360LF is a reflective SPDT RF switch that has a frequency range of 100MHz to 3GHz and an impedance of 50Ohm.

  • Type: Reflective SPDT RF Switch
  • Frequency Range: 100MHz to 3GHz
  • Impedance: 50Ohm
  • Insertion Loss: 0.6dB
  • Isolation: 16dB
  • Package: 8-VFDFN Exposed Pad
  • Standard Package: 3,000
