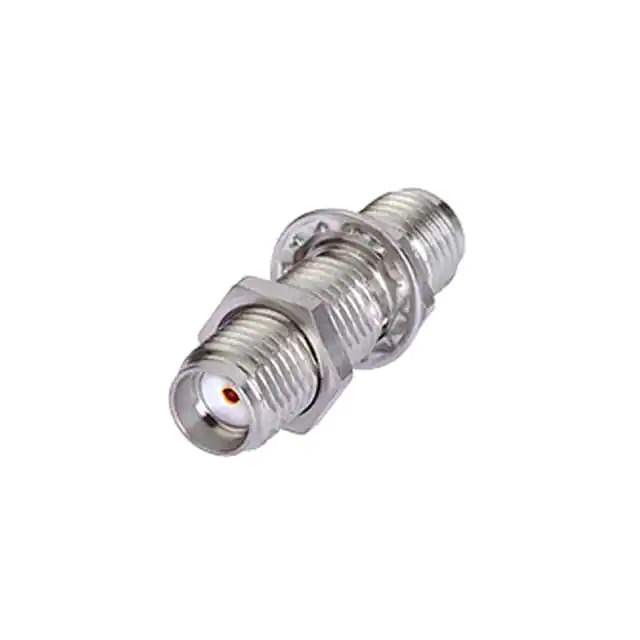

Same model may have multiple batches, images only for reference.

SF-SF50+

Name: SF-SF50+
Brand: Mini-Circuits
SKU: 720306
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SF-SF50+
Manufacturer	Mini-Circuits
Catalog	Coaxial Connectors (RF)
Description	ADPTR SMA-F/SMA-F BKHD SS ROHS
Datasheet	SF-SF50+ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Adapters
Mfr	Mini-Circuits
Package	Bag
Product Status	Active
Adapter Type	Jack to Jack
Conversion Type	Same Series
Adapter Series	SMA to SMA
Center Gender	Female to Female
Convert From (Adapter End)	SMA Jack, Female Socket
Convert To (Adapter End)	SMA Jack, Female Socket
Impedance	50Ohm
Style	Straight
Mounting Type	Panel Mount
Mounting Feature	Bulkhead
Fastening Type	Threaded, Threaded
Frequency - Max	18 GHz
Body Material	Stainless Steel
Temperature Range - Operating	-55°C ~ 100°C
Standard Package	10 pcs
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.69.4010
Win Source Part Number	720306-SF-SF50+
Ultra Librarian 3D Model	Ultra Librarian SF-SF50+ CAD Model

Alternative Products

Description

The Coaxial Connector Adapter 720306-SF-SF50+ is a versatile component designed for RF coaxial connections.

Style: Straight
Fastening Type: Threaded
Impedance: 50Ohm
Maximum Frequency: 18GHz
Material: Stainless Steel
Mounting: Panel
Type: Jack to Jack (SMA to SMA)
Package: 10 pcs
Packaging: Bag
Temperature Range: -55°C to 100°C
Status: Active
