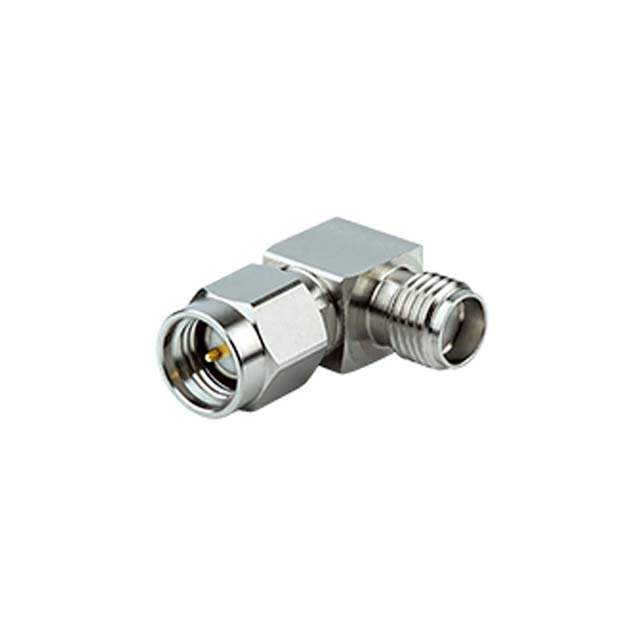

Same model may have multiple batches, images only for reference.

SFR-SM50+

Get a Quote

Part No	SFR-SM50+
Manufacturer	Mini-Circuits
Catalog	Coaxial Connectors (RF) - Adapters
Description	ADPTR R/A SMA-F/SMA-M DC-18GHZ
Datasheet	SFR-SM50+ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1209655-SFR-SM50+
Manufacturer	Mini-Circuits
Category	Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Adapters
Package	Bag
Product Status	Active
Adapter Type	Plug to Jack
Conversion Type	Same Series
Adapter Series	SMA to SMA
Center Gender	Female to Male
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	SMA Jack, Female Socket
Ultra Librarian 3D Model	Ultra Librarian SFR-SM50+ CAD Model

Description

Mini-Circuits’ SFR-SM50+ is a right-angle SMA-Female to SMA-Male adapter supporting a wide range of applications from DC to 18 GHz. This model provides excellent VSWR, low insertion loss, and flat response versus frequency. The SFR-SM50+ features Trimetal alloy body and Gold-plated beryllium copper construction center contact.
