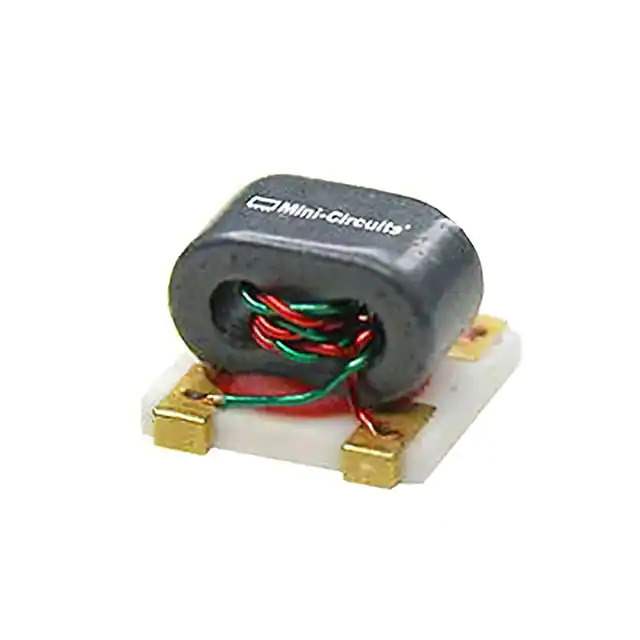

TC16-1TG2+ Real Image
Same model may have multiple batches, images only for reference.

TC16-1TG2+

Part No TC16-1TG2+
Manufacturer Mini-Circuits
Catalog Balun
Description 1:16 CORE & WIRE TRANSFORMER, 20
Datasheet
TC16-1TG2+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Balun
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency Range 20MHz ~ 300MHz
Phase Difference 5°
Insertion Loss (Max) 3dB
Return Loss (Min) 4.34dB
Package / Case 6-SMD (5 Leads), Flat Lead
Mounting Type Surface Mount
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.4035
Win Source Part Number 936142-TC16-1TG2+
Ultra Librarian 3D Model Ultra Librarian TC16-1TG2+ CAD Model

Description

The 936142-TC16-1TG2+ is a surface mount Balun designed for use in RF and wireless applications from Mini-Circuits.

  • Frequency Range: 20MHz to 300MHz
  • Phase Difference: 5°
  • Insertion Loss (max): 3dB
  • Return Loss (min): 4.34dB
  • Package: 6-SMD (5 Leads), flat lead
  • Packaging: tape and reel
  • Package Quantity: 2,000 pcs
  • Status: active
