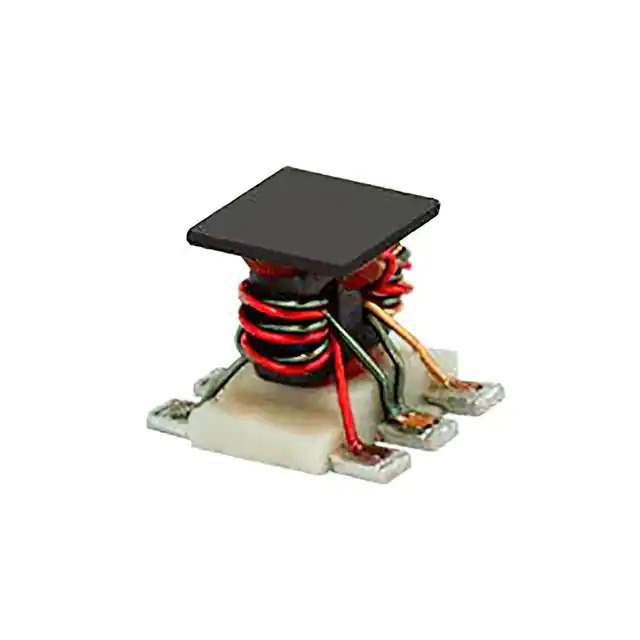

TCD-9-1W-75X+ Real Image
Same model may have multiple batches, images only for reference.

TCD-9-1W-75X+

Part No TCD-9-1W-75X+
Manufacturer Mini-Circuits
Catalog RF Directional Coupler
Description RF DIR COUPLER 5MHZ-2GHZ 6SMD
Datasheet
TCD-9-1W-75X+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Directional Coupler
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Coupler Type Standard
Frequency 5MHz ~ 2GHz
Coupling Factor 8.9 ± 0.5dB
Applications CATV
Power - Max 1W
Return Loss 25.24dB
Package / Case 6-SMD, Flat Leads
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 899272-TCD-9-1W-75X+
Ultra Librarian 3D Model Ultra Librarian TCD-9-1W-75X+ CAD Model

Description

The 899272-TCD-9-1W-75X+ is an RF Directional Coupler designed for use in CATV applications.

  • Frequency Range: 5MHz to 2GHz
  • Coupling Factor: 8.9 ± 0.5dB
  • Return Loss: 25.24dB
  • Maximum Power Handling Capability: 1W
  • Package: 6-SMD, flat leads package
  • Packaging: Tape and Reel
  • Standard Package Quantity: 2,000 pcs
  • Manufacturer: Mini-Circuits
  • Status: Active
