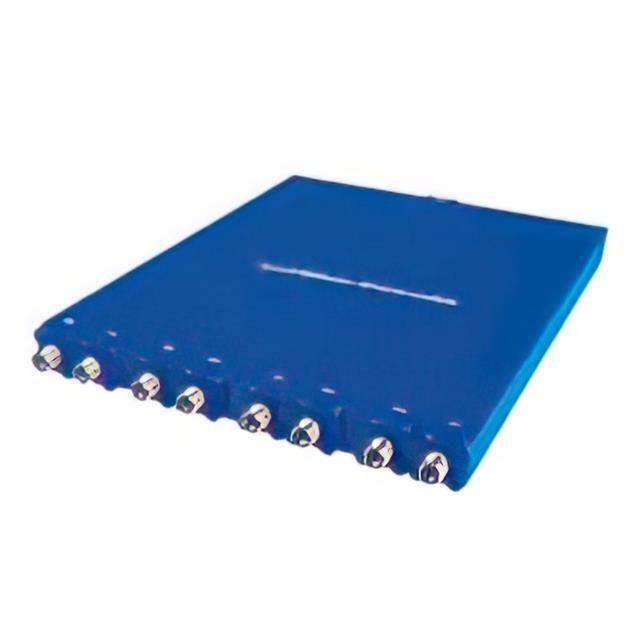

ZC8PD-5R263-S+ Mini-Circuits
Same model may have multiple batches, images only for reference.

ZC8PD-5R263-S+

Part No ZC8PD-5R263-S+
Manufacturer Mini-Circuits
Catalog RF and Wireless >RF Power Dividers/Splitters
Description 8 WAYS STRIPLINE DC PWR SPLTR
Datasheet
ZC8PD-5R263-S+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Description

Mini-Circuits’ ZC8PD-5R263-S+ is a super wideband 8-way 0° splitter/combiner providing coverage from 0.5 to 26.5 GHz, supporting a wide range of applications including 5G, L-Band, S-Band, X-band, Ku-Band, K-Band, instrumentation and many more. This model provides 20W power handling as a splitter and very low insertion loss across the entire operating frequency range, minimizing power dissipation and delivering excellent signal power transmission from input to output. The ZC8PD-5R263-S+ comes housed in a case measuring 4.64 x 6.37 x 0.5" with super SMA connectors.
