CM450DY-24S Mitsubishi

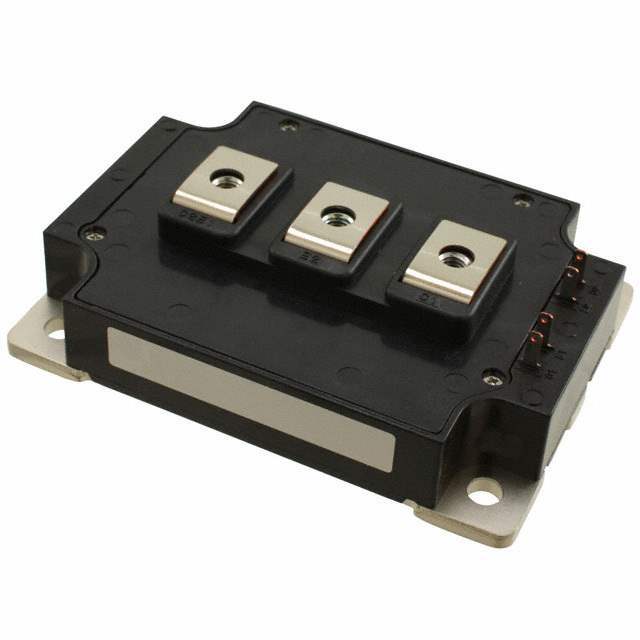

Same model may have multiple batches, images only for reference.

CM450DY-24S

Part No CM450DY-24S
Manufacturer Mitsubishi
Catalog IGBTs - Modules
Description IGBT MOD 1200V 410A 3330W
Datasheet
CM450DY-24S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products >Transistors >IGBTs IGBT Modules
Manufacturer Mitsubishi
Packaging Bulk
Part Status Discontinued
Configuration Half Bridge
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 410 A
Power - Max 3330 W
Vce(on) (Max) @ Vge, Ic 2.25V @ 15V, 450A
Current - Collector Cutoff (Max) 1 mA
Ultra Librarian 3D Model Ultra Librarian CM450DY-24S CAD Model

Description

IGBT Module Half Bridge 1200 V 410 A 3330 W Chassis Mount Module<button class="MuiButtonBase-root MuiIconButton-root MuiIconButton-sizeSmall mui-css-1d8yyci" tabindex="0" type="button" data-testid="copy-button">
