0015912100

Get a Quote

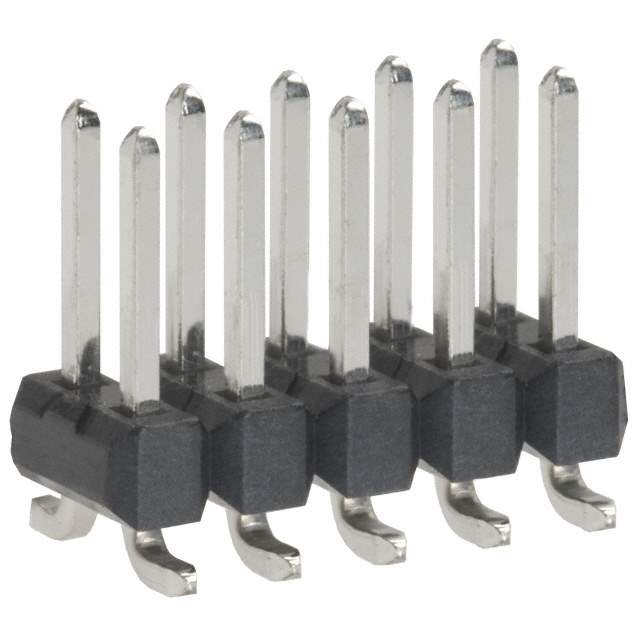

Part No	0015912100
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 10POS 2.54MM / Connector Header Surface Mount 10 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr	Molex, LLC
Series	C-Grid 71308
Package	Tube
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	-
Overall Contact Length	-
Insulation Height	0.090" (2.29mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	150.0µin (3.81µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Features	-
Temperature Range - Operating	-
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	-
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	150.0µin (3.81µm)
Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
Base Product Number	001591
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	42 pcs
Win Source Part Number	1380536-0015912100
Ultra Librarian 3D Model	Ultra Librarian 0015912100 CAD Model

Alternative Products

Description

The C-Grid 71308 Male Pin Header is a reliable connector designed for various applications, including automotive, general purpose, lighting, medical, and telecommunications manufactured by Molex, LLC.

Positions: 10
Row Configuration: Dual-Row
Termination: Solder
Contact Material: Copper Alloy
Contact Finish: Tin
Insulation Material: Liquid Crystal Polymer (LCP) and Glass-Filled
Pitch: 0.100" (2.54mm)
Shrouded: Unshrouded
REACH: Unaffected
ECCN: EAR99
HTSUS Code: 8536.69.4040
Moisture Sensitivity Level: 1 (unlimited)
