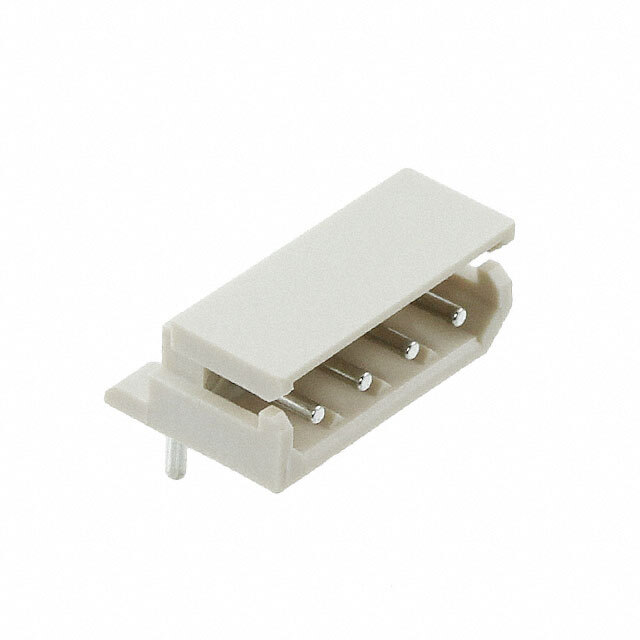

0022057045

Name: 0022057045
Brand: Molex, LLC
SKU: 1481494
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	0022057045
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	Connector Header Through Hole, Right Angle 4 position 0.098" (2.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Mfr	Molex
Series	Mini-SPOX 5268
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.138" (3.50mm)
Contact Length - Post	0.138" (3.50mm)
Insulation Height	0.193" (4.90mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	160.0µin (4.06µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Contact Finish Thickness - Post	160.0µin (4.06µm)
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
Base Product Number	002205
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1481494-0022057045
Ultra Librarian 3D Model	Ultra Librarian 0022057045 CAD Model
