Same model may have multiple batches, images only for reference.

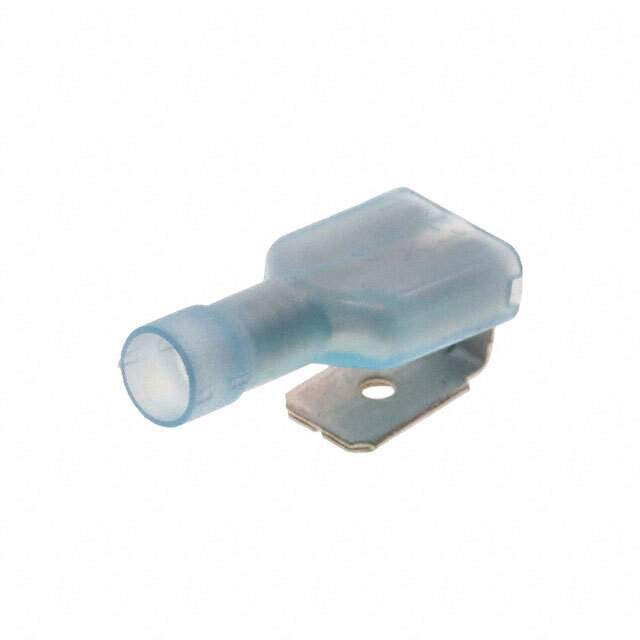

0190130029 Real Image
Same model may have multiple batches, images only for reference.

0190130029

Part No 0190130029
Manufacturer Molex, LLC
Catalog Terminals
Description CONN QC RCPT/TAB 14-16AWG 0.250 / 0.250" (6.35mm) Quick Connect Female and Male 14-16 AWG Crimp Connector Fully Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr Molex, LLC
Series InsulKrimp
Package Bulk
Product Status Active
Terminal Type Stacked
Gender Female and Male
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.370" (9.40mm)
Length - Overall 0.860" (21.84mm)
Termination Crimp
Wire Gauge 14-16 AWG
Insulation Fully Insulated
Mounting Type Free Hanging (In-Line)
Color Blue
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.159" (4.04mm)
Base Product Number 019013
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 854227-0190130029
Ultra Librarian 3D Model Ultra Librarian 0190130029 CAD Model

Description

The InsulKrimp Quick Disconnect Connectors are perfect for your electrical connection needs.

  • Wire Gauge: 14-16 AWG
  • Termination: Crimp
  • Contact Material: Brass
  • Contact Plating: Tin
  • Insulation: Fully Insulated
  • Tab Width: 0.250"
  • Tab Thickness: 0.032"
  • Overall Length: 0.860"
  • Insulation Diameter: 0.159"
  • Mounting Type: Free Hanging (In-Line)
  • Package Quantity: 500 pcs
  • Gender Options: Female and Male
  • Manufacturer: Molex, LLC
