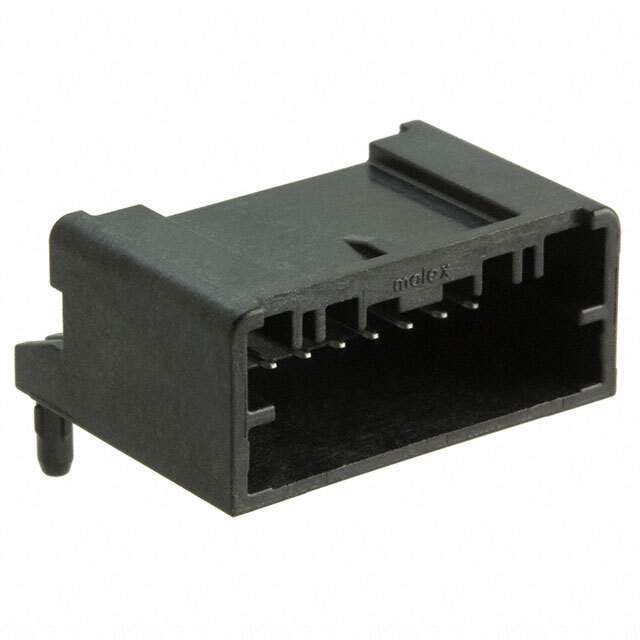

0347930080 Real Image
Same model may have multiple batches, images only for reference.

0347930080

Part No 0347930080
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 8POS 2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex, LLC
Series Mini50 34793
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.079" (2.00mm)
Number of Positions 8
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Lock
Contact Length - Mating 0.218" (5.55mm)
Contact Length - Post 0.110" (2.79mm)
Insulation Height 0.372" (9.44mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Syndiotactic Polystyrene (SPS), Glass Filled
Features Board Guide
Material Flammability Rating UL94 V-0
Insulation Color Black
Applications Automotive
Base Product Number 034793
Standard Package 1,080 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 849105-0347930080
Ultra Librarian 3D Model Ultra Librarian 0347930080 CAD Model

Description

The Mini50 34793 is a male header connector designed for board-to-board connections.

  • Positions: 8
  • Rows: Single
  • Board Guide: Yes
  • Latch Lock: Yes
  • Termination: Solder
  • Mounting: Through-Hole, Right Angle
  • Contact Material: Brass
  • Contact Finish: Tin
  • Product Status: Active
  • Standard Package: 1,080 pcs
  • Application: Automotive
  • Flammability Rating: UL94 V-0
