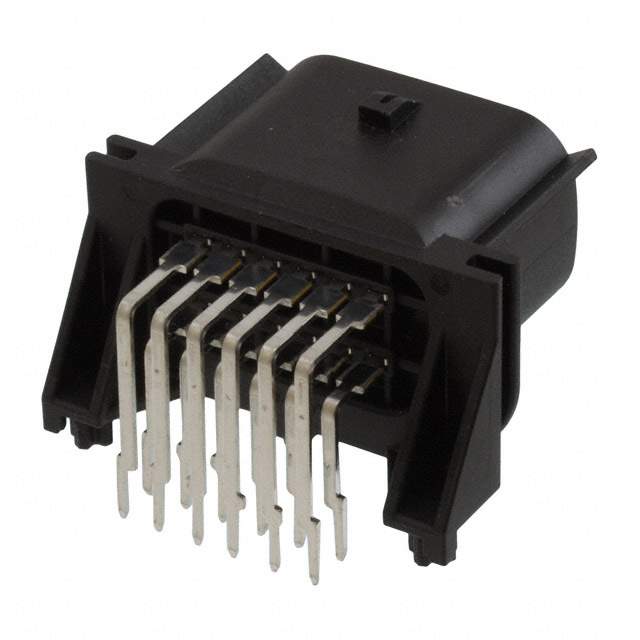

Part No 0367831201
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 12POS 3.2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex, LLC
Series MX120G 36783
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.126" (3.20mm)
Number of Positions 12
Number of Rows 2
Row Spacing - Mating 0.233" (5.93mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Panel Mount, Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.649" (16.49mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Board Lock
Ingress Protection IP67 - Dust Tight, Waterproof
Material Flammability Rating UL94 HB
Insulation Color Black
Applications Automotive, Industrial, Lighting, Medical
Base Product Number 036783
Standard Package 384 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 853172-0367831201
Ultra Librarian 3D Model Ultra Librarian 0367831201 CAD Model

Description

The 853172-0367831201 is a male pin header connector from the MX120G 36783 series by Molex.

  • Positions: 12
  • Features: Board lock features
  • Applications: Automotive, industrial, lighting, and medical
  • Package: Bulk
  • Standard Package Quantity: 384 pieces
  • Contact Material: Brass
  • Insulation Material: Polyamide (PA)
  • Pitch: 0.126 inches (3.20mm)
  • Mating Contact Finish: Tin
  • Ingress Protection: IP67, dust tight and waterproof
