Same model may have multiple batches, images only for reference.

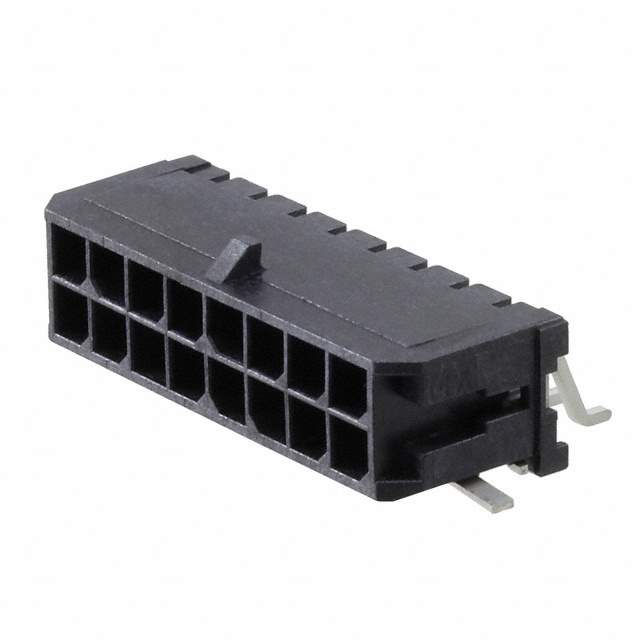

0430451610 Real Image
Same model may have multiple batches, images only for reference.

0430451610

Part No 0430451610
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 16POS 3MM / Connector Header Surface Mount, Right Angle 16 position 0.118" (3.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex, LLC
Series Micro-Fit 3.0 43045
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.290" (7.37mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Brass Alloy
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Solder Retention
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 600V
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Base Product Number 043045
Standard Package 200 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856031-0430451610
Ultra Librarian 3D Model Ultra Librarian 0430451610 CAD Model

Description

The Micro-Fit 3.0 43045 is a header connector designed for applications requiring a reliable and secure connection. Micro-Fit 3.0 43045.

  • Feature: Solder Retention
  • Number of Positions: 16
  • Connector Type: Header
  • Contact Gender: Male Pin
  • Number of Rows: Dual Row
  • Loaded: All Positions
  • Fastening Type: Locking Ramp
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel
  • Contact Material: Brass Alloy
  • Voltage Rating: 600V
  • Manufacturer: Molex, LLC
  • Product Status: Active
